Pudu T600 Underride

Heavy-Payload Industrial Delivery Robot

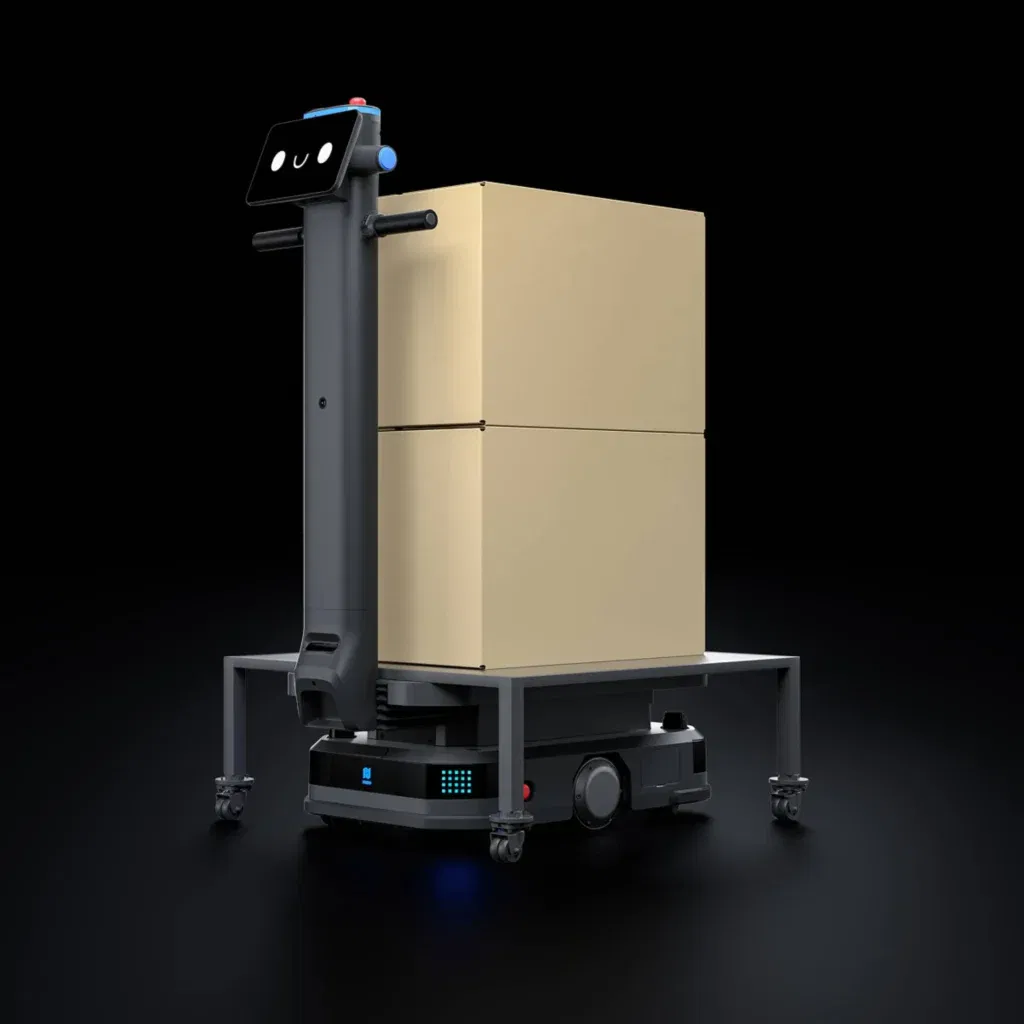

PUDU T600

The PUDU T600 is an industrial delivery robot designed for transporting heavy payloads. Built around a robust mobile chassis, it offers a user-friendly design with touchscreen and handle.

Features: Equipped with a built-in screen and operable without a central control system. Includes a power-assist switch, quick-access buttons, and front indicator lights for simple and efficient operation.

PUDU T600 Underride

The PUDU T600 Underride is a chassis-based industrial delivery robot. Thanks to its low-profile design, it can drive underneath racks and autonomously lift them for internal transport.

Features: Its compact design allows it to navigate under rack units and lift from the center, requiring minimal clearance for passage.

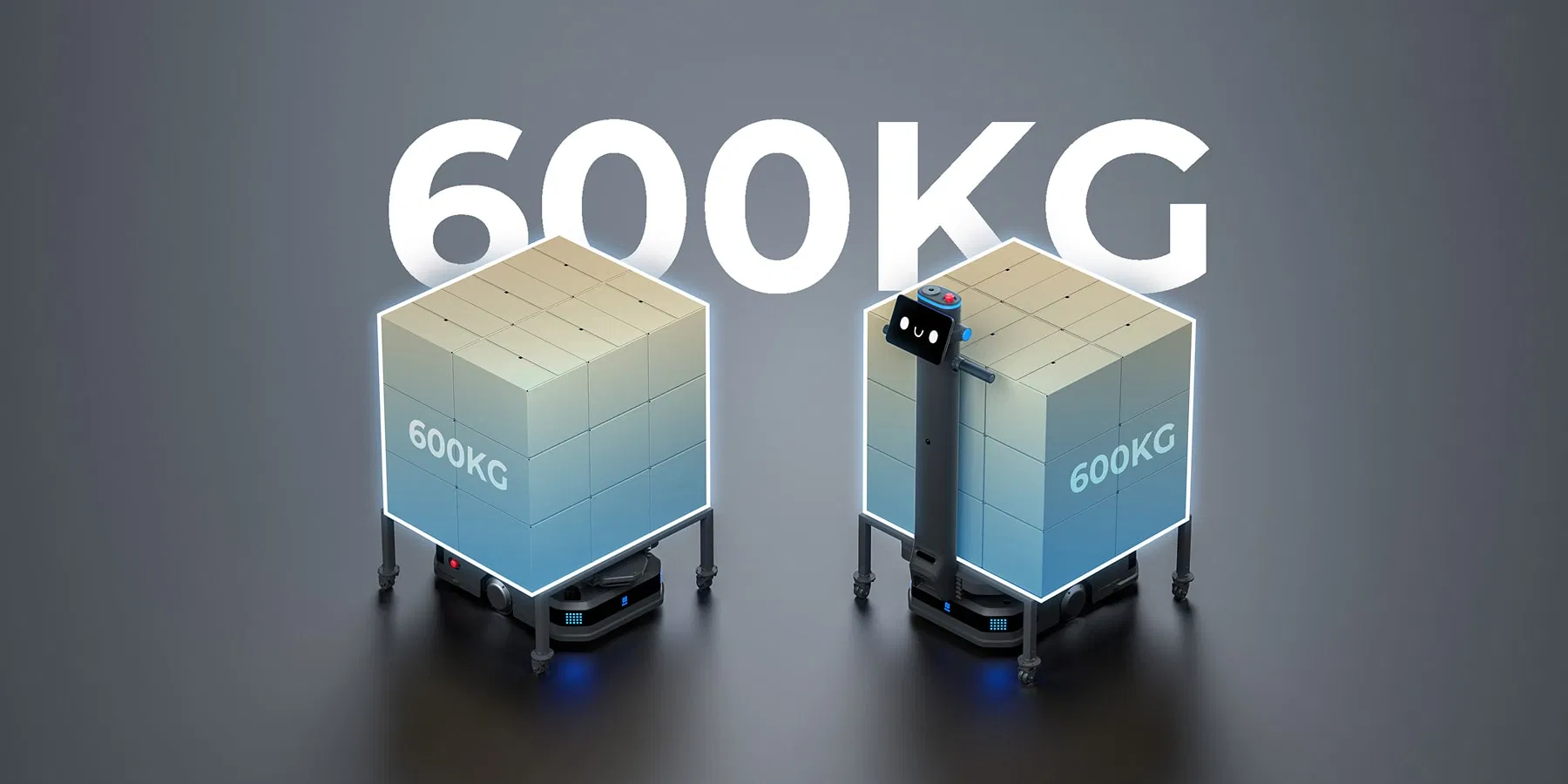

600 KG Payload Capacity

With a payload capacity of 600 KG, the T600 series is designed for heavy-duty material transport, reducing delivery frequency and increasing efficiency per trip.

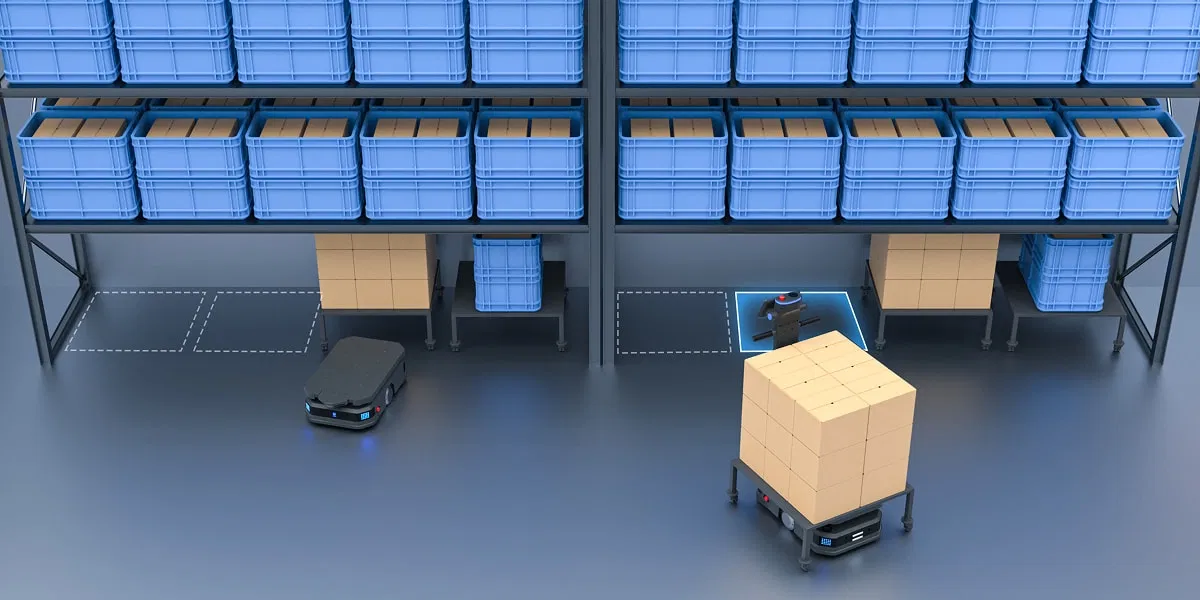

Rack Recognition & Autonomous Handling

Thanks to advanced navigation and perception systems, the T600 series intelligently identifies targets and performs autonomous pick-and-place operations.

This enables fully unmanned logistics workflows and efficient warehouse operations.

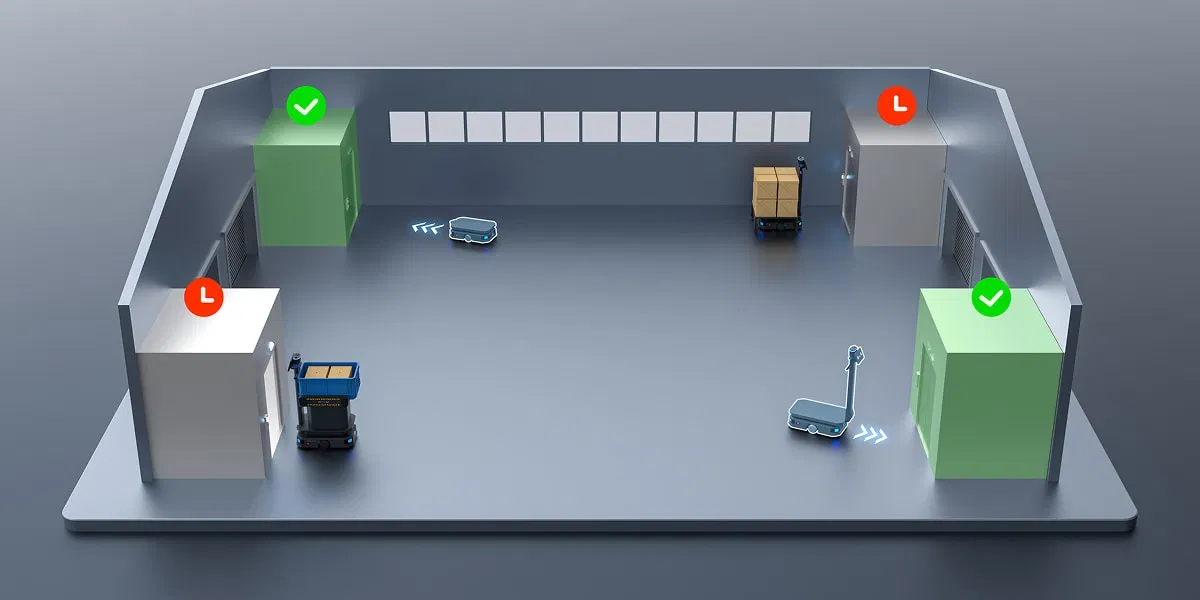

Idle Elevator Priority

In environments with multiple elevators, the system prioritizes the use of idle elevators.

The smart scheduling algorithms monitor elevator status in real time, avoid peak-time congestion, and improve cross-floor delivery efficiency.

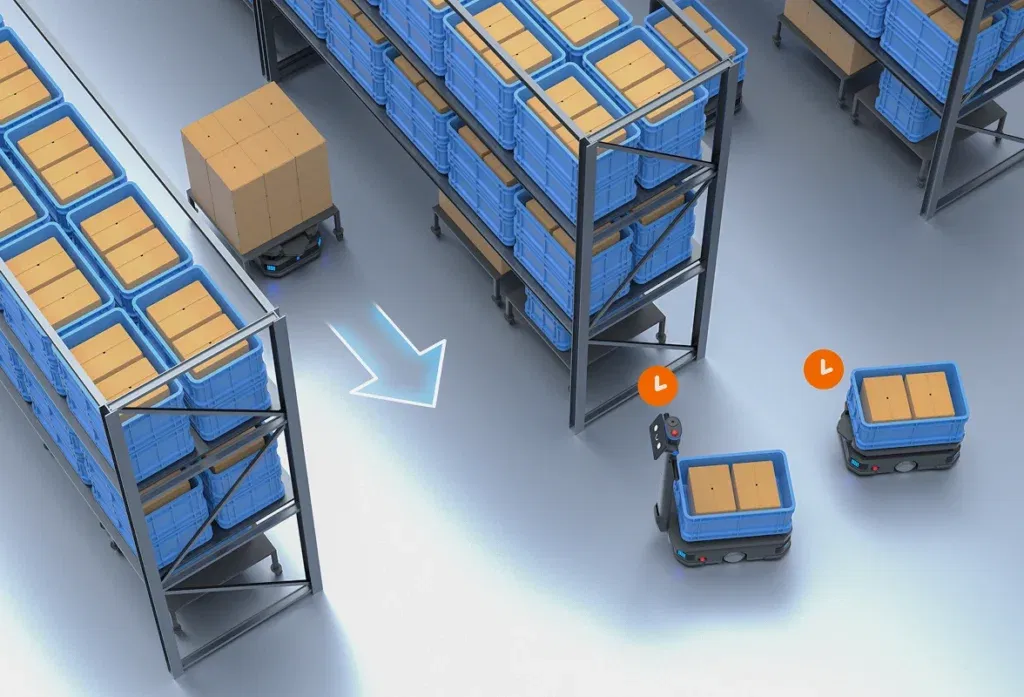

Smart Navigation in Narrow Aisles

Depending on aisle width and the robot’s dimensions, the system automatically determines whether to use single-lane or dual-lane traffic modes.

Routing is dynamically adjusted for optimal space utilization and efficient multi-robot coordination.

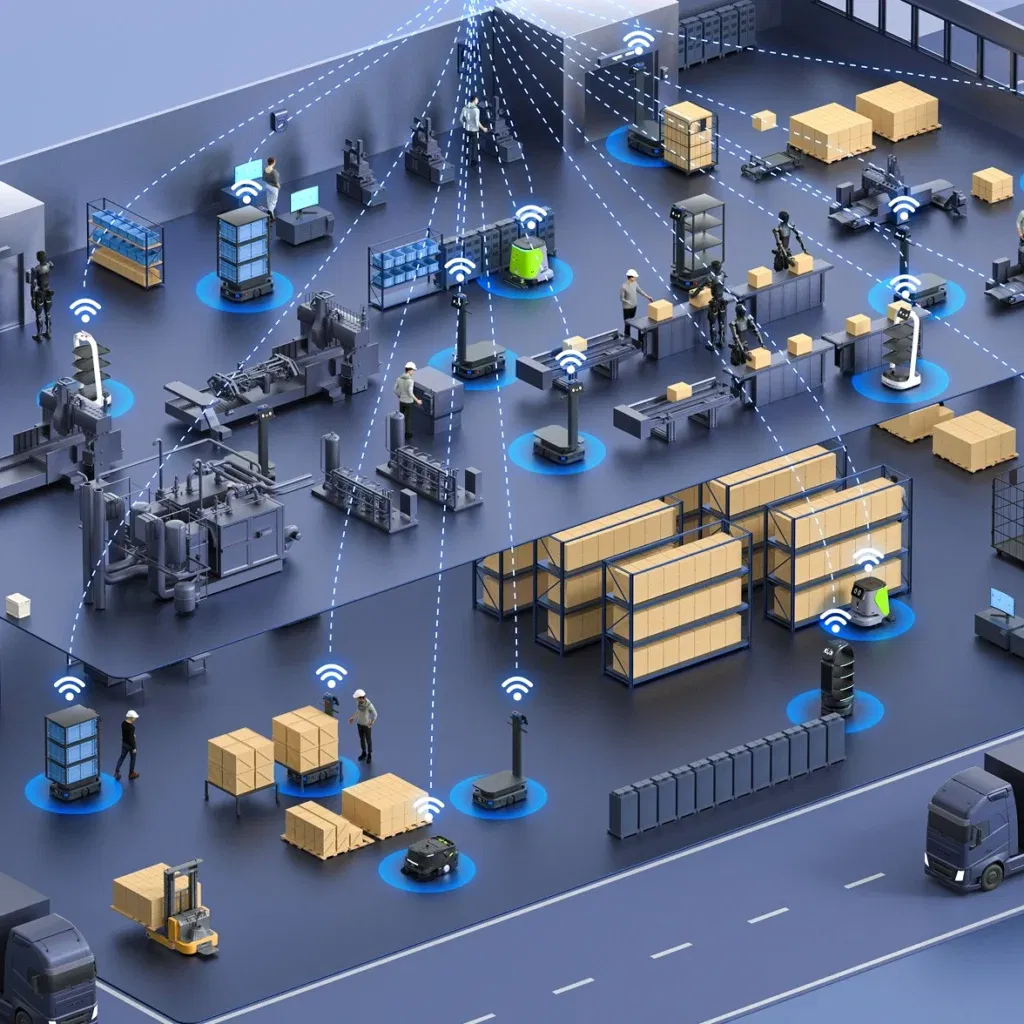

Flexible Deployment

The T600 series quickly adapts to changes in production layouts without time-consuming reconfiguration or infrastructure changes.

VDA5050 Protocol

Compatible with the VDA5050 standard, allowing integration with other robots and systems without custom development or complex integration.

This enables fast deployment of a scalable logistics network.

On-Premises Deployment

Supports local (on-premises) deployment for maximum system control and security.

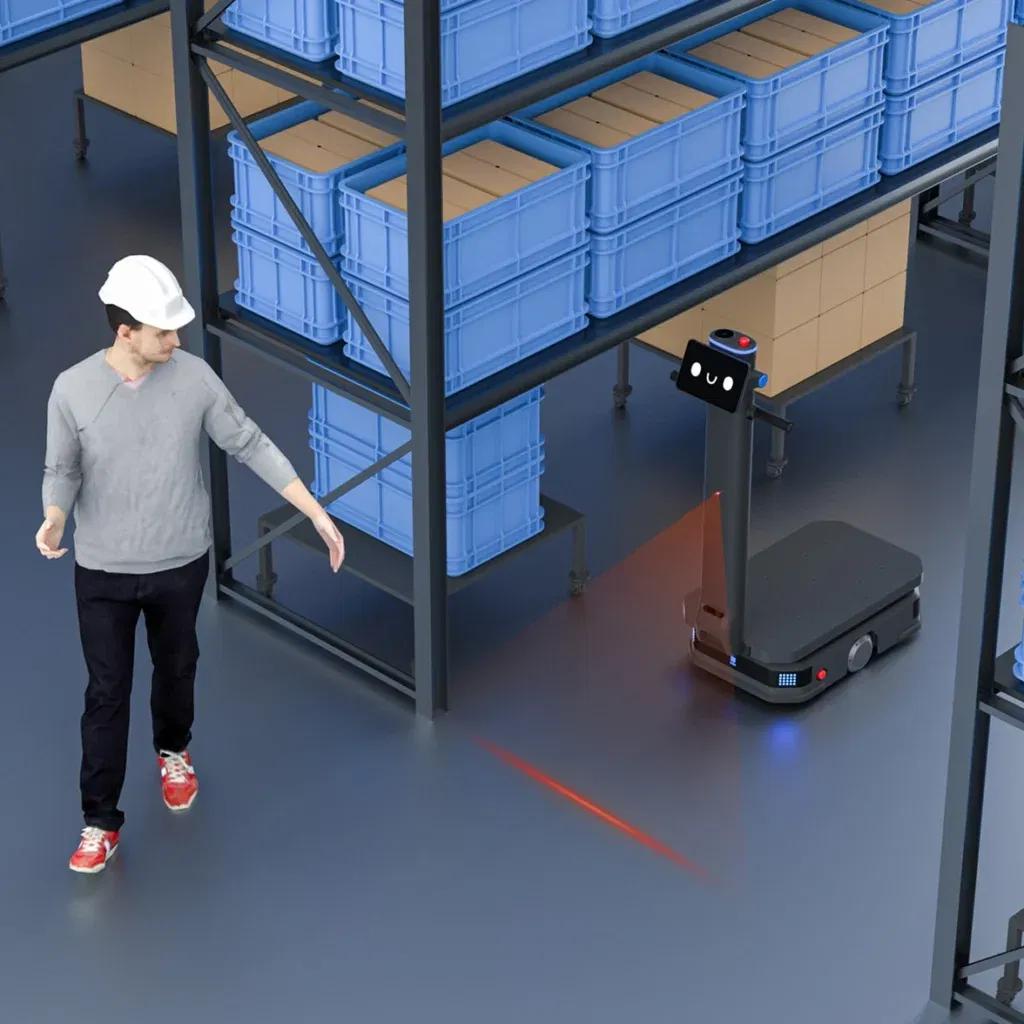

Ground Projection¹

Projects a visual warning line in front of the T600 to indicate its path, promoting a safe human-robot collaborative workspace.

Dynamic Obstacle Detection

Autonomously detects low obstacles and flexibly navigates around them to ensure safe operation.

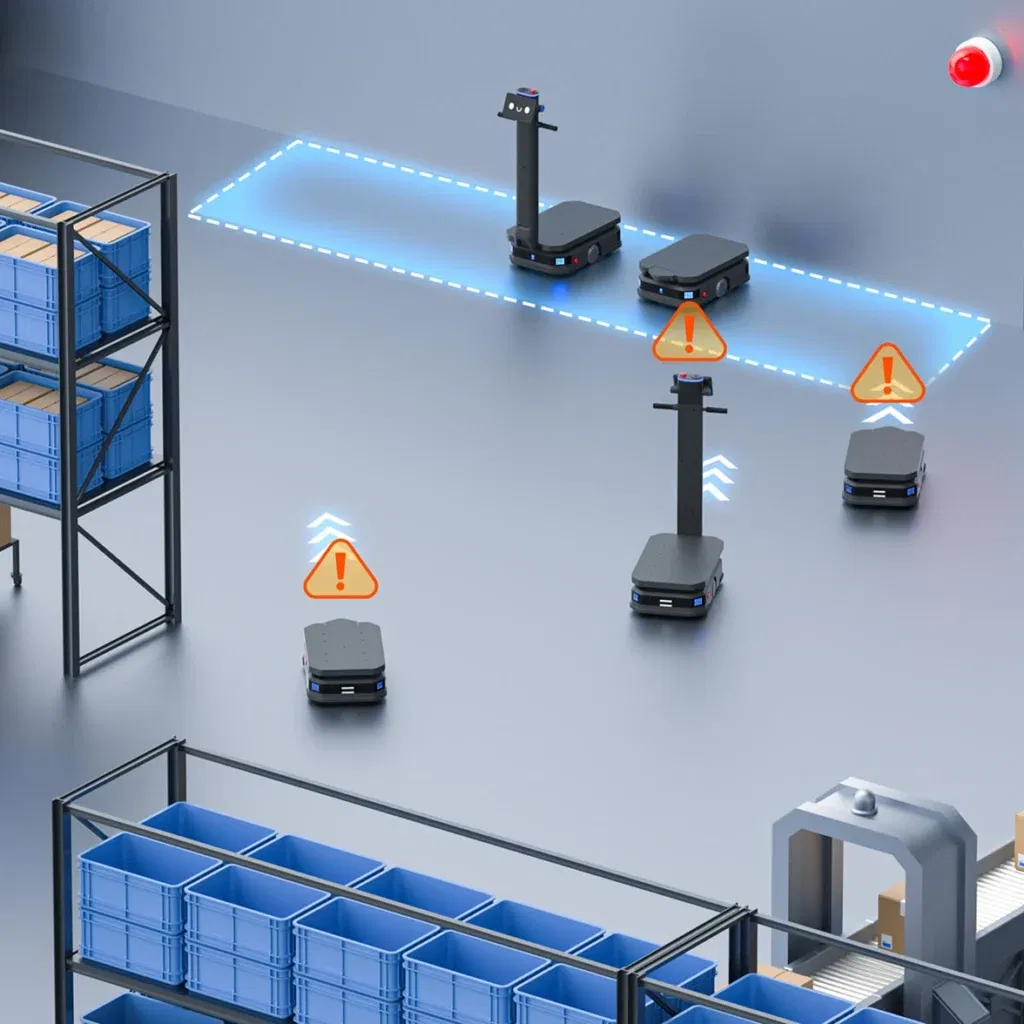

Disaster Detection

The T600 series is equipped with a dedicated emergency detection system that automatically responds to signals such as fire alarms or earthquakes:

  • Autonomous navigation to a safe area.
  • Intelligent decision-making to stop or park safely.

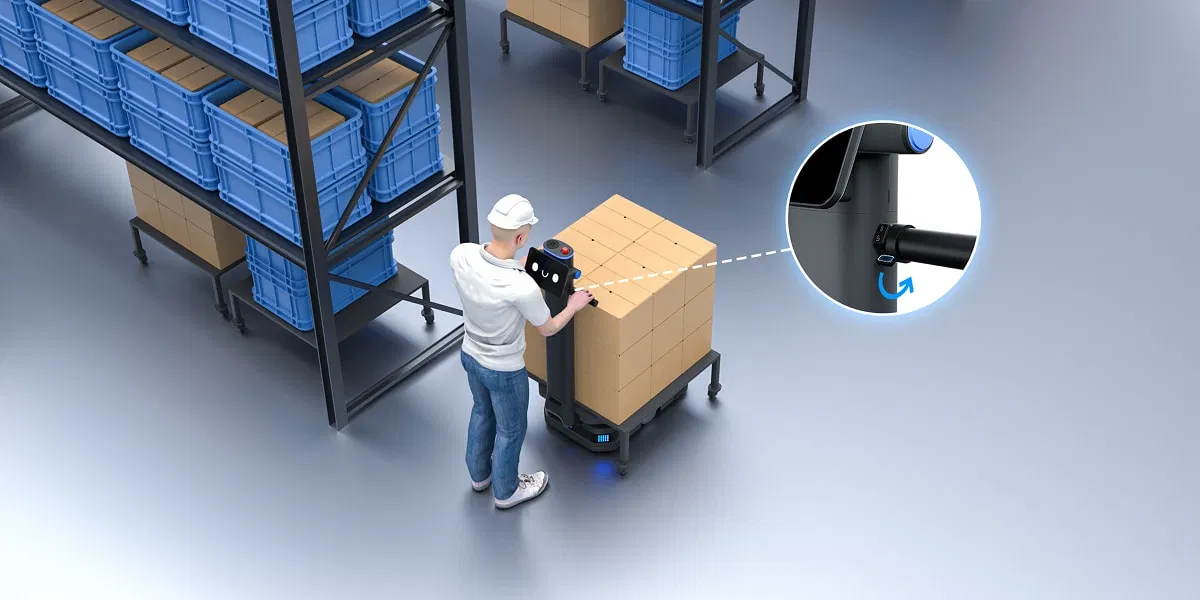

Handle with Assist Switch²

Features an ergonomic handle with assist switch that allows the user to easily control the robot—even with heavy payloads.

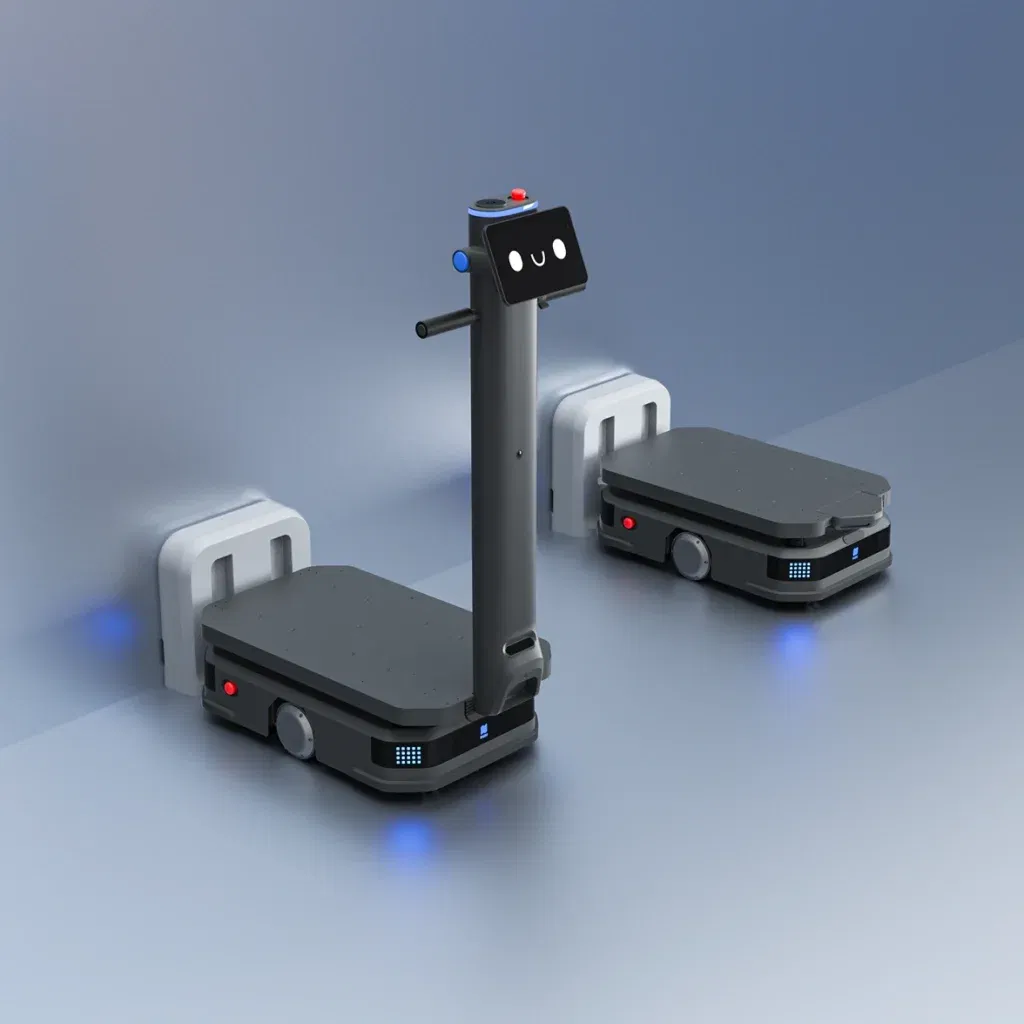

24/7 Non-Stop Operation

The T600 series supports 12 hours of battery life and can charge up to 90% in just 2 hours.
Supports both automatic charging and battery swapping—ideal for continuous deployment.

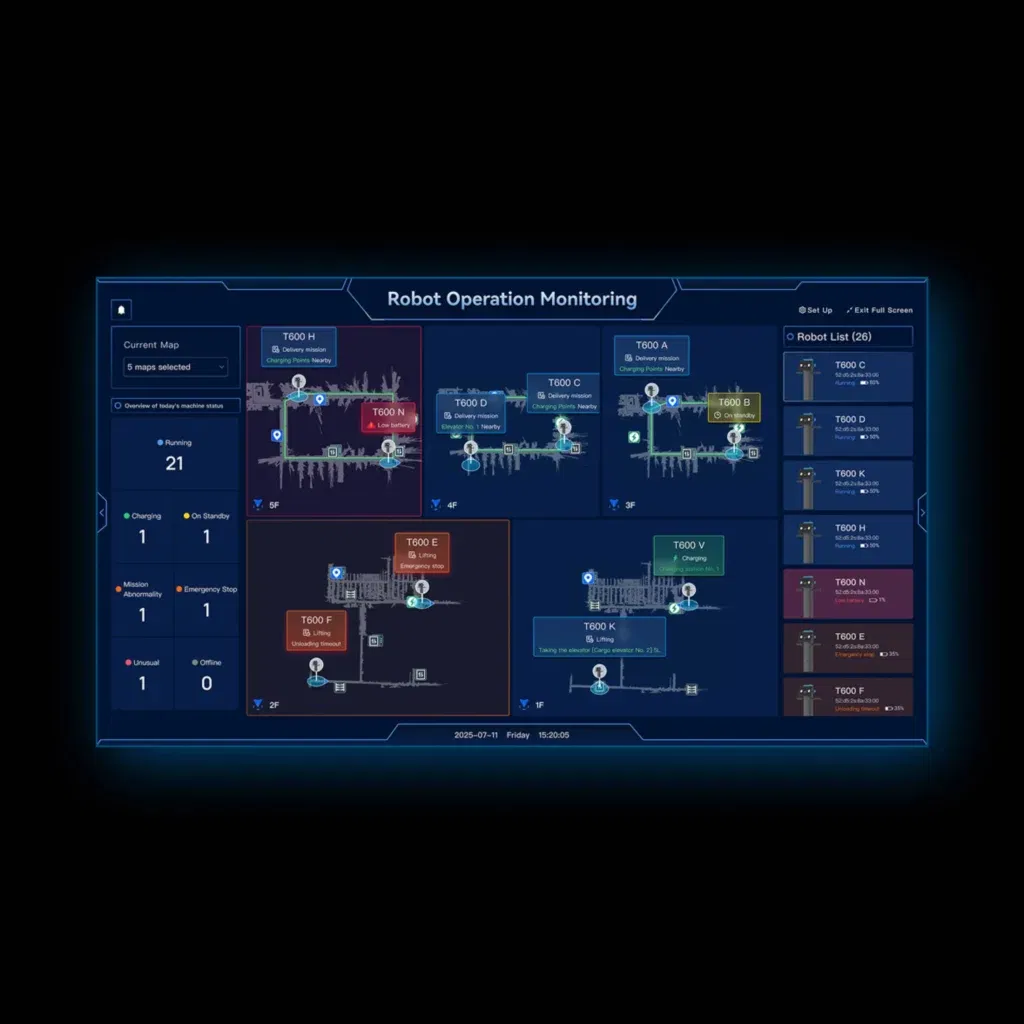

IoT Integration

Related accessories

Product specifications

PUDU T600 Underride

  • Dimensions: 845 mm × 500 mm × 255 mm
    (33.3 in × 19.7 in × 10.0 in)

  • Weight: 94 KG (208 lbs)

  • Maximum load: 600 KG (1322 lbs)

  • Battery capacity: 30 AH

  • Charging time: 2 hours (0% to 90%)

  • Run-time: 12 hours (no load)

  • Cruise speed: 0.2–1.2 m/s (0.67–3.94 ft/s)

  • Navigation: LiDAR SLAM only

  • Minimum passability: 65 cm (25.6 in)

  • Max. surmountable height: 10 mm (0.39 in)

  • Max. surmountable gap: 35 mm (1.38 in)

  • Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

PUDU T600

  • Dimensions: 960 mm × 500 mm × 1350 mm
    (37.8 in × 19.7 in × 53.1 in)

  • Weight: 112 KG (247 lbs)

  • Maximum load: 600 KG (1322 lbs)

  • Battery capacity: 30 AH

  • Charging time: 2 hours (0% to 90%)

  • Run-time: 12 hours (no load)

  • Cruise speed: 0.2–1.2 m/s (0.67–3.94 ft/s)

  • Navigation: VSLAM + LiDAR SLAM

  • Minimum passability: 70 cm (27.6 in)

  • Max. surmountable height: 10 mm (0.39 in)

  • Max. surmountable gap: 35 mm (1.38 in)

  • Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

¹ Ground projection is not supported on the Underride version.
² The power-assist switch is not supported on the Underride version.
