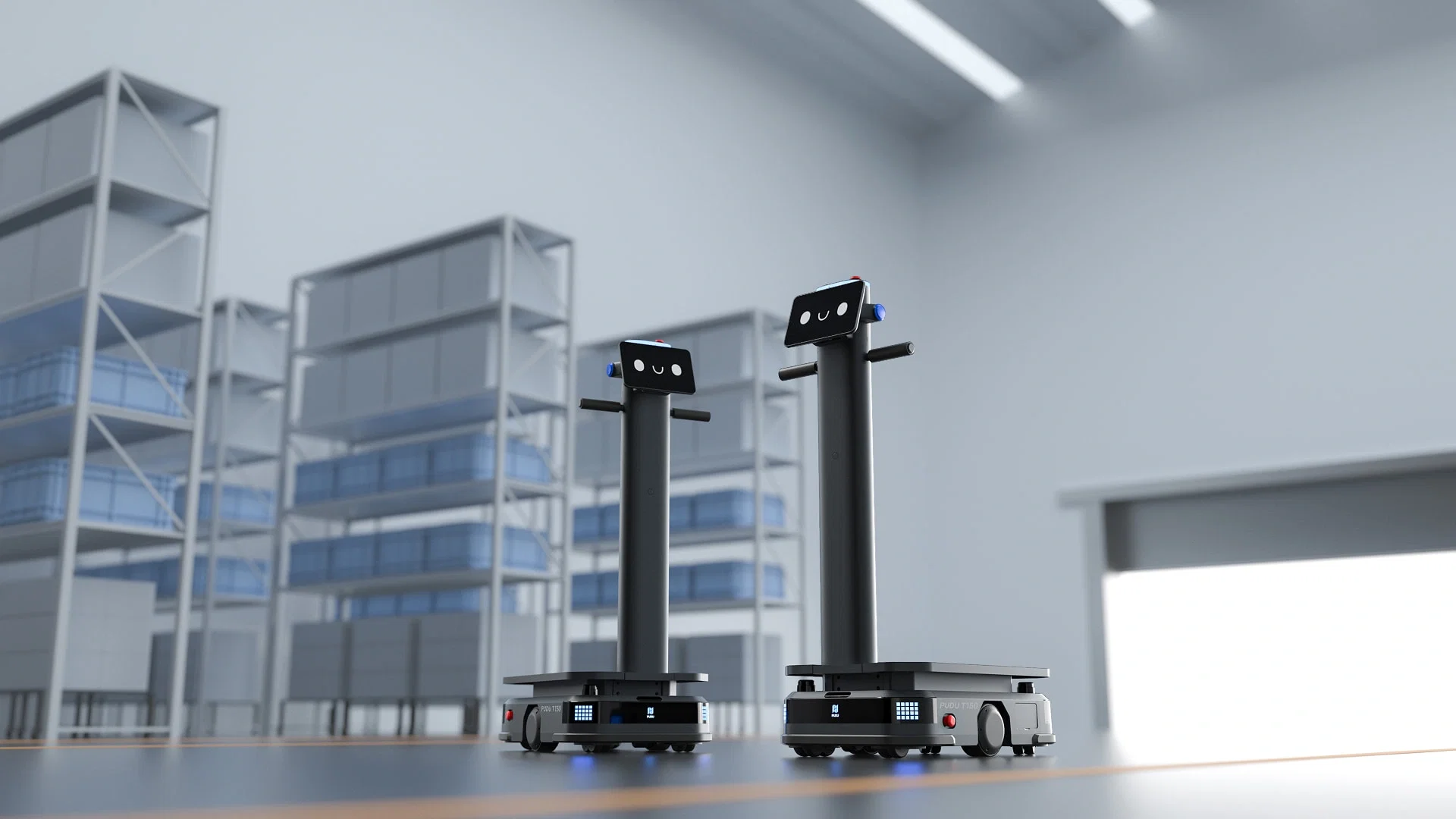

Pudu T150

Light-payload Industrial Delivery Robot

PUDU T150 Lifting

The PUDU T150 Lifting features a maximum lifting height of 2.36 in (60 mm), designed for material lifting and transport tasks in industrial and warehouse environments, delivering efficient and stable automated handling performance. Powered by multi-sensor fusion, it continuously perceives environmental features and obstacle distribution to build high-precision maps for autonomous localization and navigation. Upon task assignment, the system autonomously plans optimal routes based on mapped paths and waypoints, and executes stable transport operations, enabling continuous and automated material flow in complex environments.

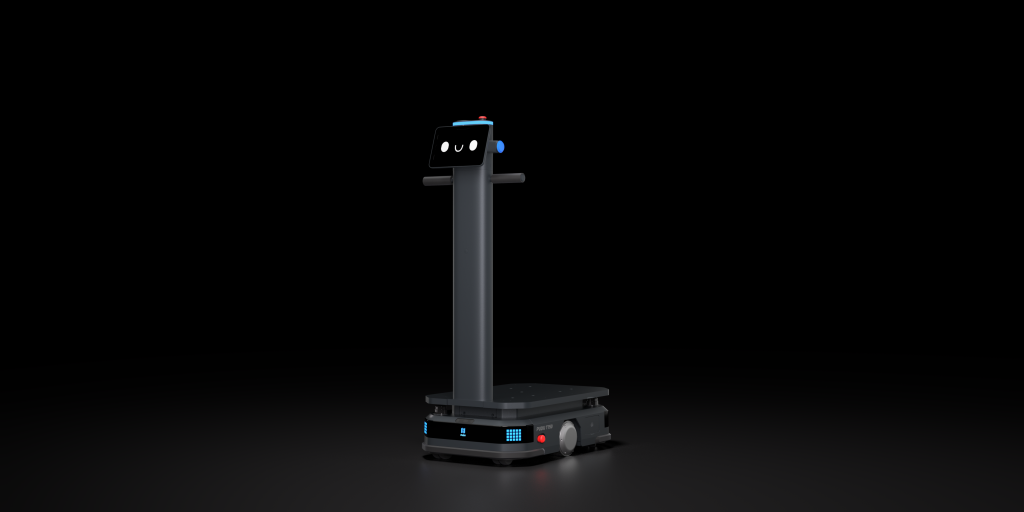

PUDU T150 Standard

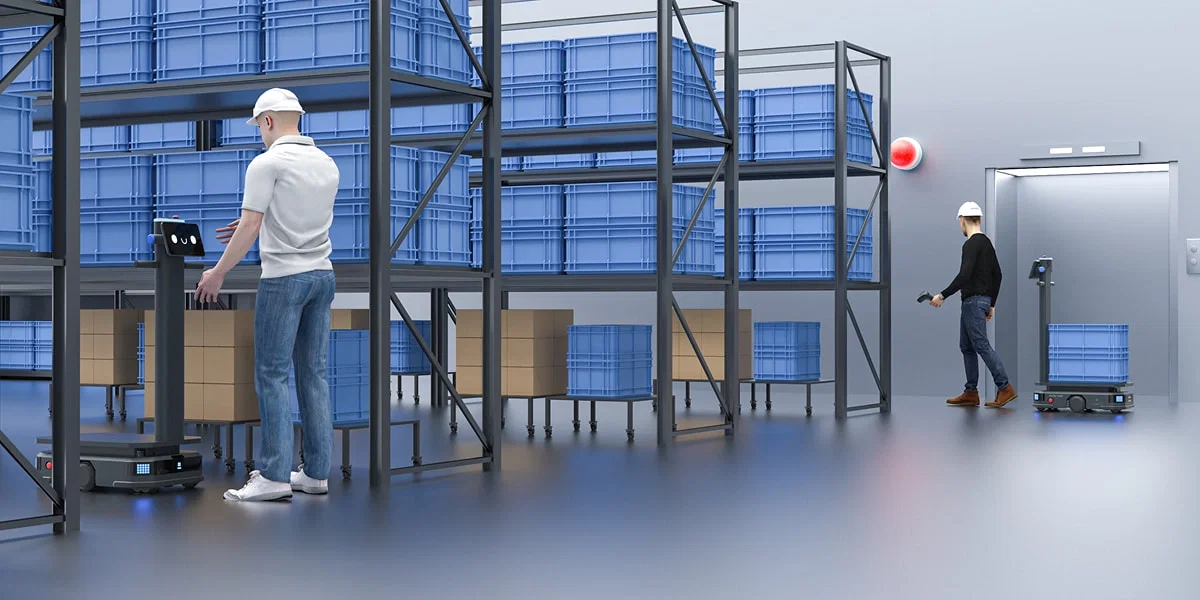

The PUDU T150 is an industrial delivery robot designed for 330 lbs (150 kg) payload applications, focusing on rapid deployment, stable operation, and high efficiency, effectively lowering the barrier to industrial automation for manufacturers and logistics operators. Built around a high-strength load-bearing chassis, it features a highly open architecture and an intuitive touchscreen interface for easy operation and fast onboarding. It is well-suited for small-item warehousing and intralogistics scenarios in industries such as 3C electronics, plastic components, fast-moving consumer goods, cosmetics, and fast fashion. The T150 integrates core IoT capabilities including autonomous elevator access, gate/turnstile passage, and remote call functions, enabling flexible operation in complex industrial environments. It also provides extensive hardware and software interfaces for system integration and hardware expansion, helping users rapidly build a stable and scalable automated logistics system.

Setup and Launch in 60 mins or less

No site modification required. Onboard mapping with multi-robot self-networking—no local servers or network deployment. True plug-and-play industrial robotics.

10 mins

Mapping completed

1 hr

Reliable operation

3 months

Reach ROI

Precision Navigation & Stability

VSLAM + LiDAR SLAM localization enables real-time adaptation to dynamic environments, delivering precise positioning and stable operation in complex conditions for uninterrupted production.

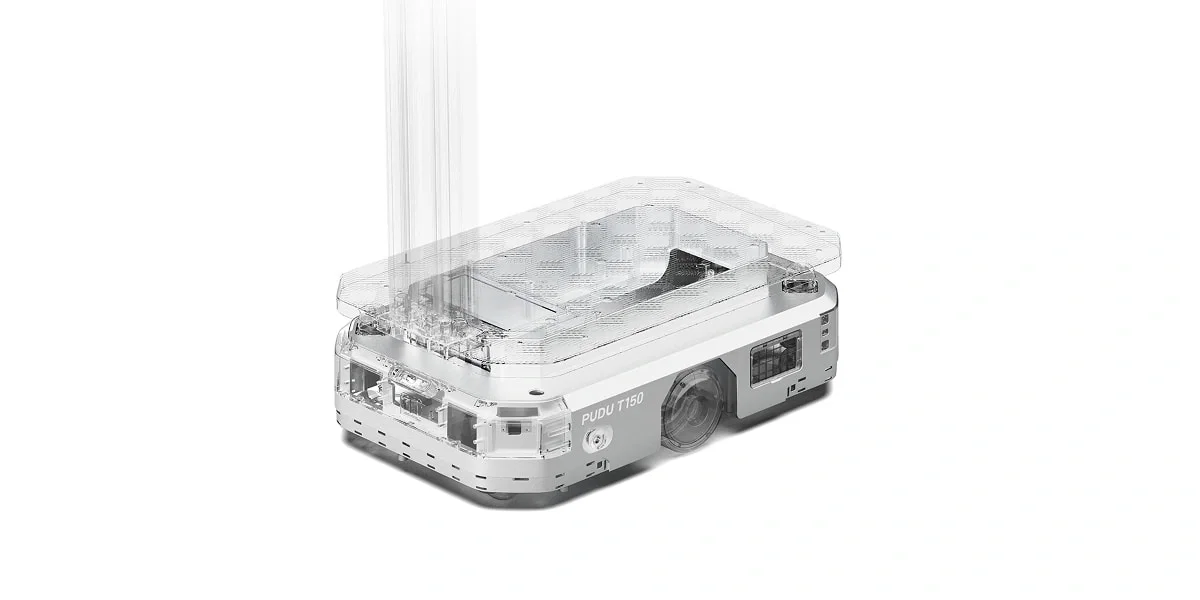

Aerospace-Grade Unibody Design/h2>

High-strength aerospace materials and unibody design ensure superior impact resistance. Built for intensive duty cycles, it guarantees 5 years of reliable, high-efficiency operation.

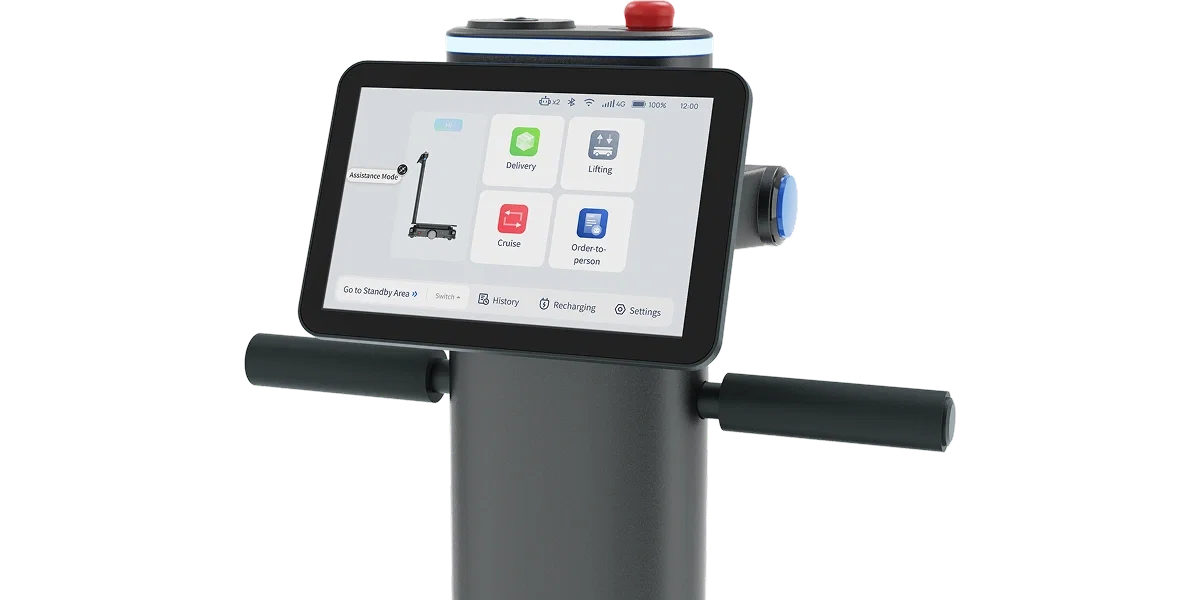

Intuitive Operation, Instant Usability

The T150 features an onboard touchscreen powered by a proprietary OS for direct task dispatching, mode switching, and configuration, supporting button pagers, PUDU Link, and API integration for intuitive, efficient operation.

Easily Adapts to Complex Environments

Integrating dual RGBD cameras and 360° dual LiDAR with AI-driven multi-level navigation and obstacle avoidance, this robot ensures precise positioning and seamless, stable operation in complex industrial environments.

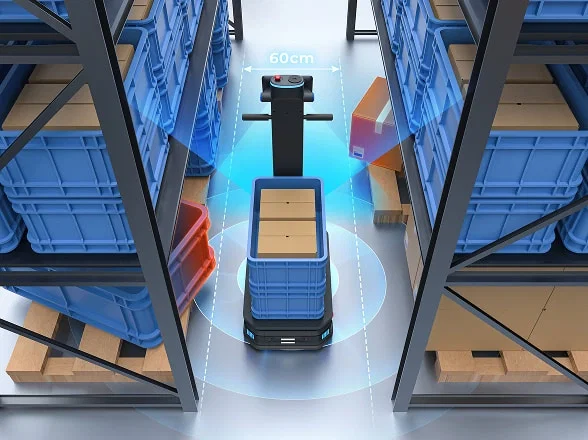

Stable Navigation in Narrow Aisle Racking

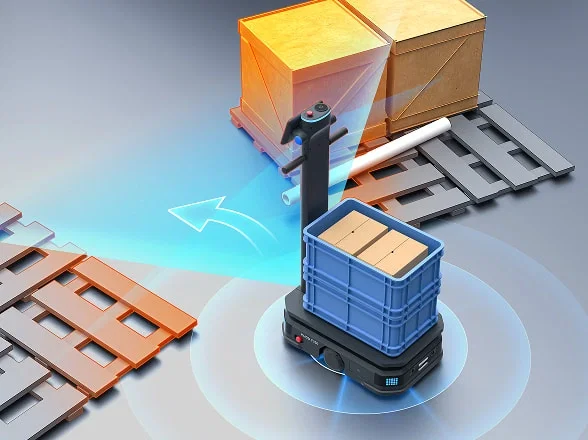

Flexible Operation in Non-Standard Pathways

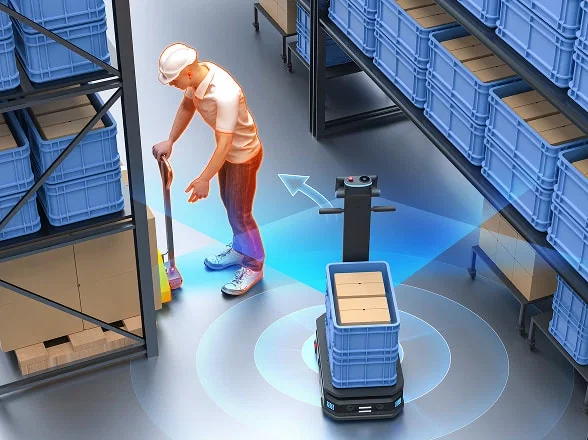

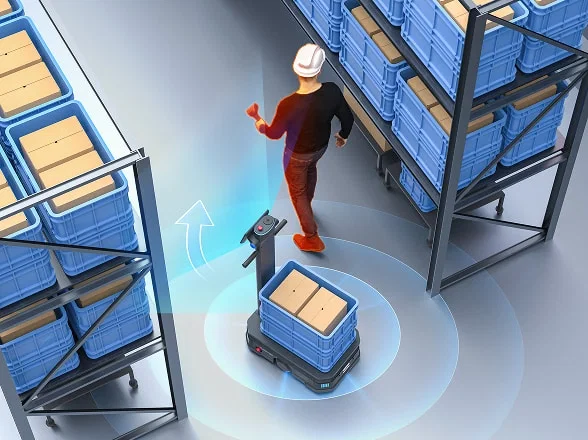

Safe Operation in Mixed Human-Robot Traffic

Rapid Obstacle Avoidance in Confined Passageways

Industrial-Grade Certified

Meeting rigorous ISO 3691-4 standards and holding industrial-specific CE certification, this robot ensures operational safety and production stability through professional-grade compliance and quality assurance.

24/7 Continuous Operation

With rapid battery swapping, auto-charging, and wired power options, the T150 delivers 24/7 uptime. This flexible power ecosystem optimizes factory throughput and maximizes production ROI.

Rapid Battery Swapping

Automatic Charging

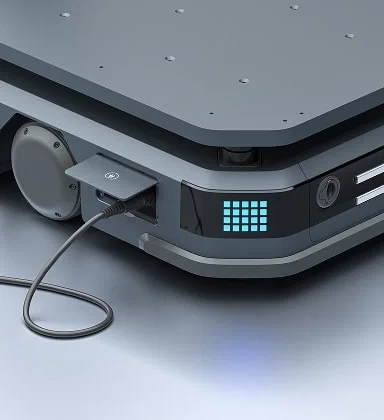

Wired Charging

IoT Integratie

Productspecificaties

T150 Lifting

    • Machine Dimensions: 835mm×500mm×1350mm (32.8 in × 19.7 in × 53.1 in)

    • Machine Weight: 81KG (178.57lbs)

    • Maximum load: 150KG (330.7 lbs)

    • Battery Capacity: 30 AH

    • Charging Time: 2h (0%-90%)

    • Operating Time: 12 uur (onbelast)

    • Maxium Operating Speed: 0.2~1.2 m/s (0.66~3.94 ft/s)

    • Navigation Method: VSLAM + LiDAR

    • Minimum Passability: 60cm (23.6 in)

    • Step-Climbing Capability: 20 mm (0.79 in)

    • Gap-Crossing Capability: 35 mm (1.38 in)

    • Operating Environment: 0°C ~ 40°C (32°F ~ 104°F)

T150 Standard

  • Machine Dimensions: 835mm×500mm×1350mm (32.8 in × 19.7 in × 53.1 in)

  • Machine Weight: 65KG (143.4lbs)

  • Maximum load: 150KG (330.7 lbs)

  • Battery Capacity: 30 AH

  • Charging Time: 2 uur (0% tot 90%)

  • Operating Time: 12 uur (onbelast)

  • Maximum Operating Speed: 0.2~1.2 m/s (0.66~3.94 ft/s)

  • Navigation Method: VSLAM + LiDAR SLAM

  • Minimum Passability: 60cm (23.6 in)

  • Step-Climbing Capability: 20 mm (0.79 in)

  • Gap-Crossing Capability: 35 mm (1.38 in)

  • Operating Environment: 0 ℃~ 40 ℃ (32°F ~ 104°F)

¹ Grondprojectie wordt niet ondersteund op de Underride-versie.
² De power-assist schakelaar wordt niet ondersteund op de Underride-versie.
