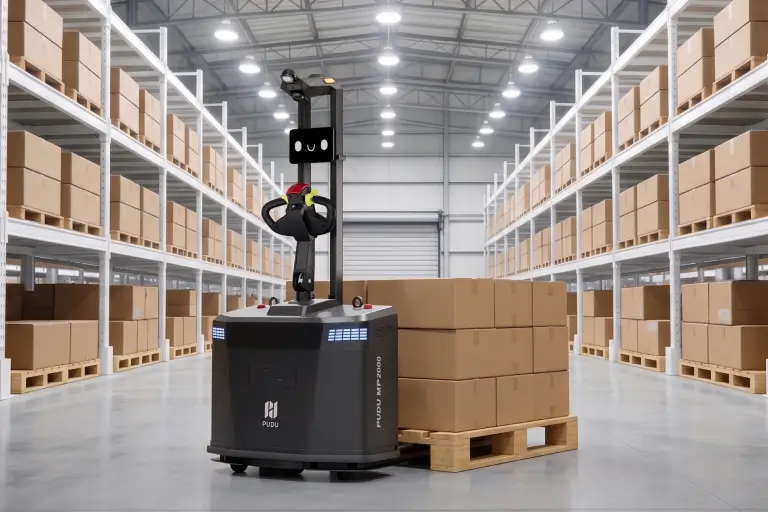

AI-Native Pallet Handling Robot
Plug-and-play, rapid deployment
Thanks to multi-sensor navigation and edge intelligence, the robot requires no site modifications, platform integration, or complex deployment. Rapid site mapping and configuration shorten deployment time and accelerate time-to-value.
AI-Native Intelligence, Autonomous Operations
AI-Native intelligence enables storage occupancy detection, load carrier recognition, and clearance assessment for autonomous operation in dynamic warehouses. This reduces manual checks, site adjustments, and commissioning.
AI Load Carrier Recognition

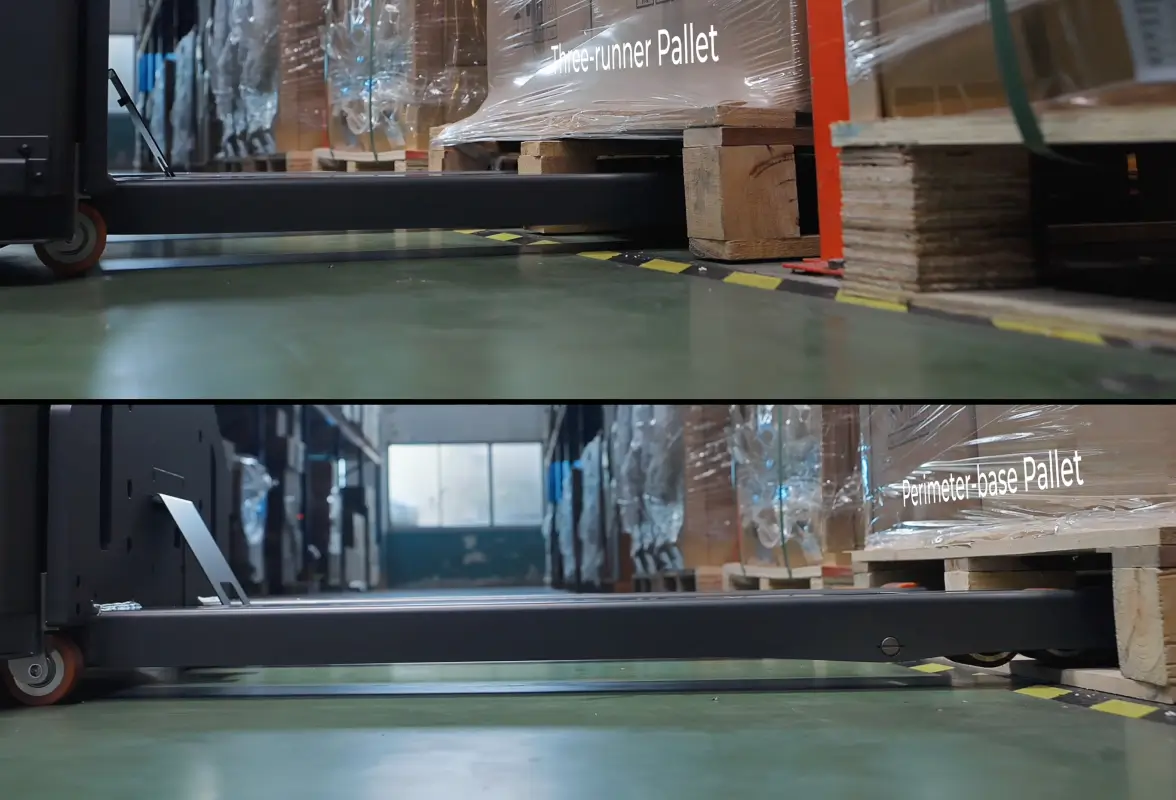

Supports standard three-stringer pallets and closed-base pallets, and automatically learns to recognize non-standard load carriers for accurate fork entry and stable transport.
Compatible with three-stringer pallets and closed-base pallets.

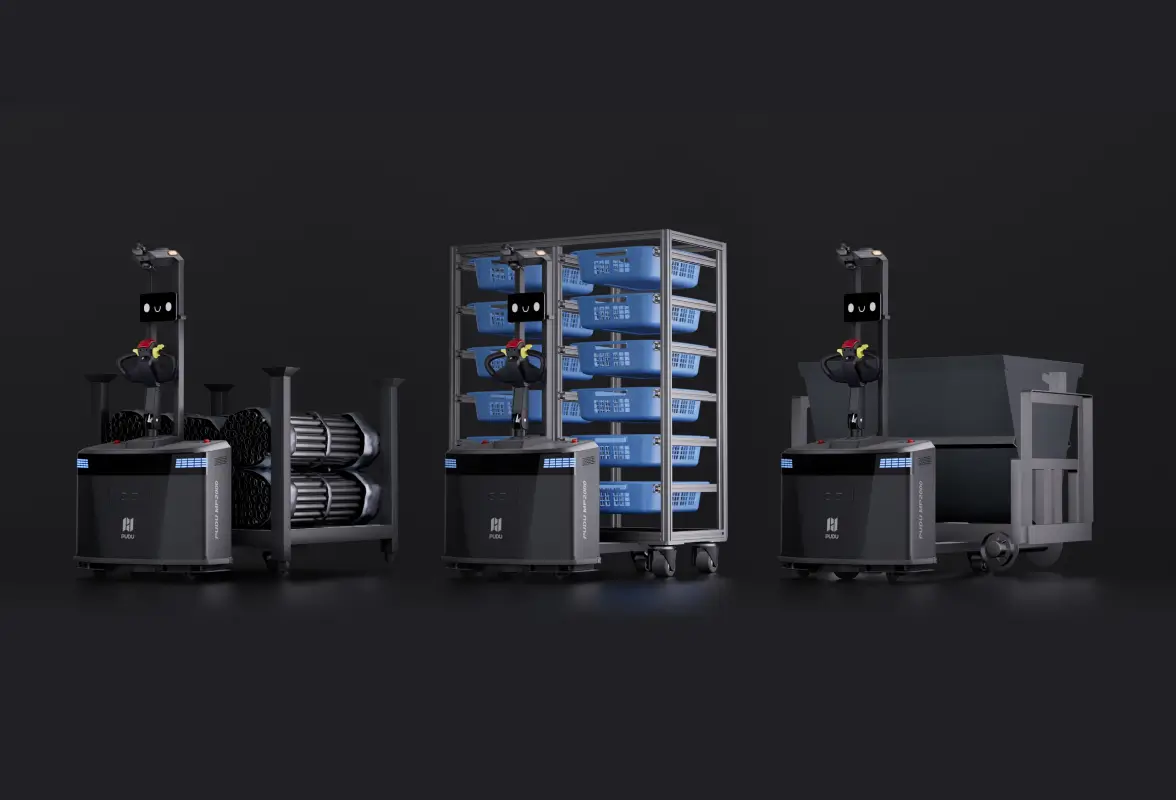

Compatible with non-standard load carriers.
AI Storage Detection, Seamless Pallet Handling
Detects storage location occupancy and pallet positions, then selects the correct target and plans the route for each deposit or retrieval action. This completes the handling cycle without manual confirmation.
Adaptive Alignment, Precise Fork Entry
Automatically adapts to manually placed pallets with an offset of up to 15 cm and an angle of up to 15°, minimizing manual intervention for reliable operation in complex environments.

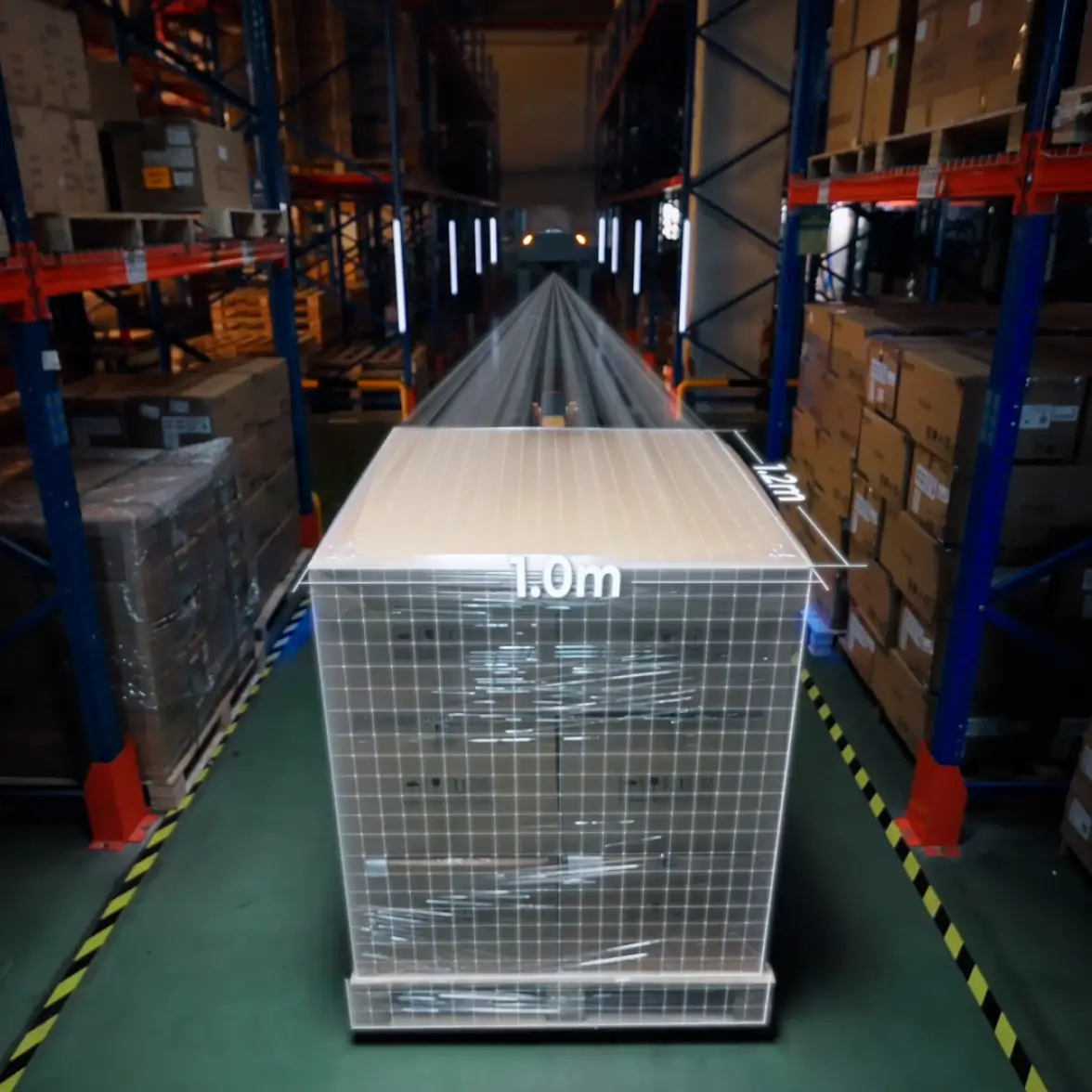

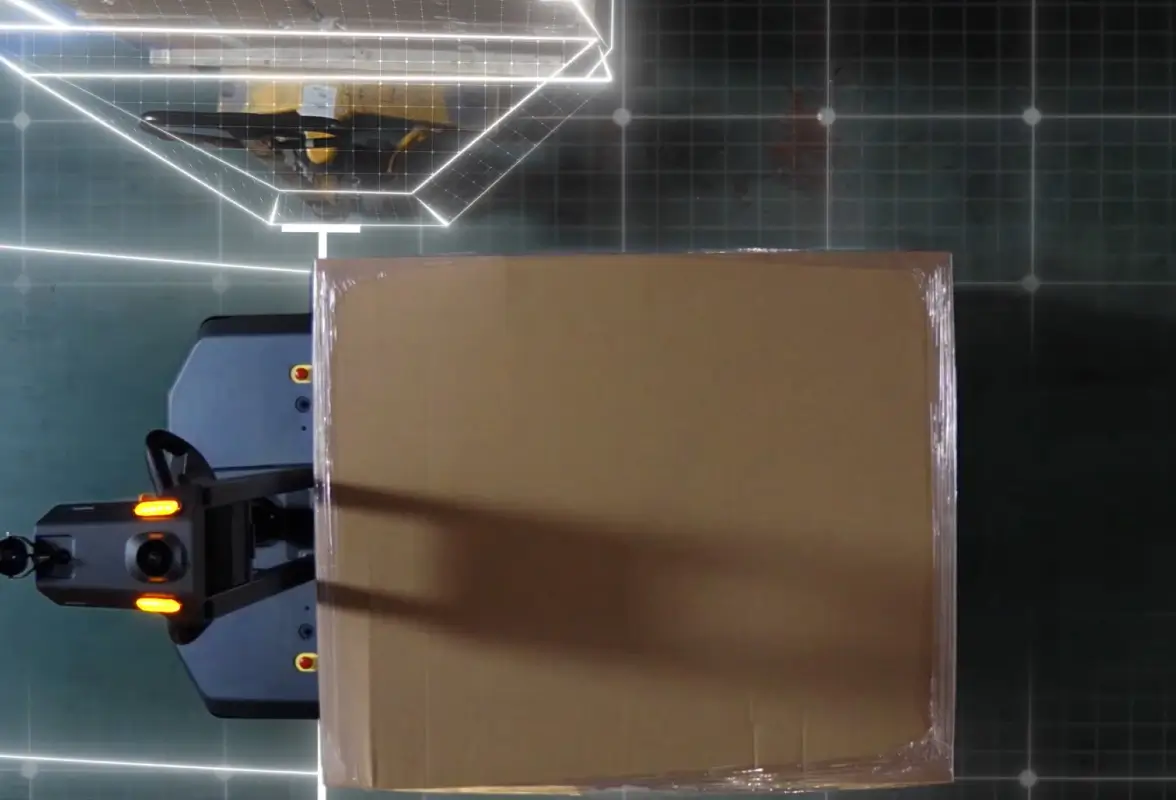

Intelligent Clearance Assessment
Detects the dimensions and contours of the load to calculate the required clearance for safe passage in real time. Overcomes thresholds up to 10 mm and gaps up to 35 mm in complex environments.
Intelligent Fleet Orchestration
Distributed fleet orchestration enables each robot to make independent decisions and plan routes, with inter-robot communication ensuring efficient coordination. Even offline, the fleet continues to operate in sync.
Fork Insertion in 20 Sec, Fast Pick-Up
With fork insertion in 20 seconds and speeds of up to 1.6 m/s unloaded and 1.2 m/s loaded, the robot shortens cycle times and accelerates material flow for higher throughput.

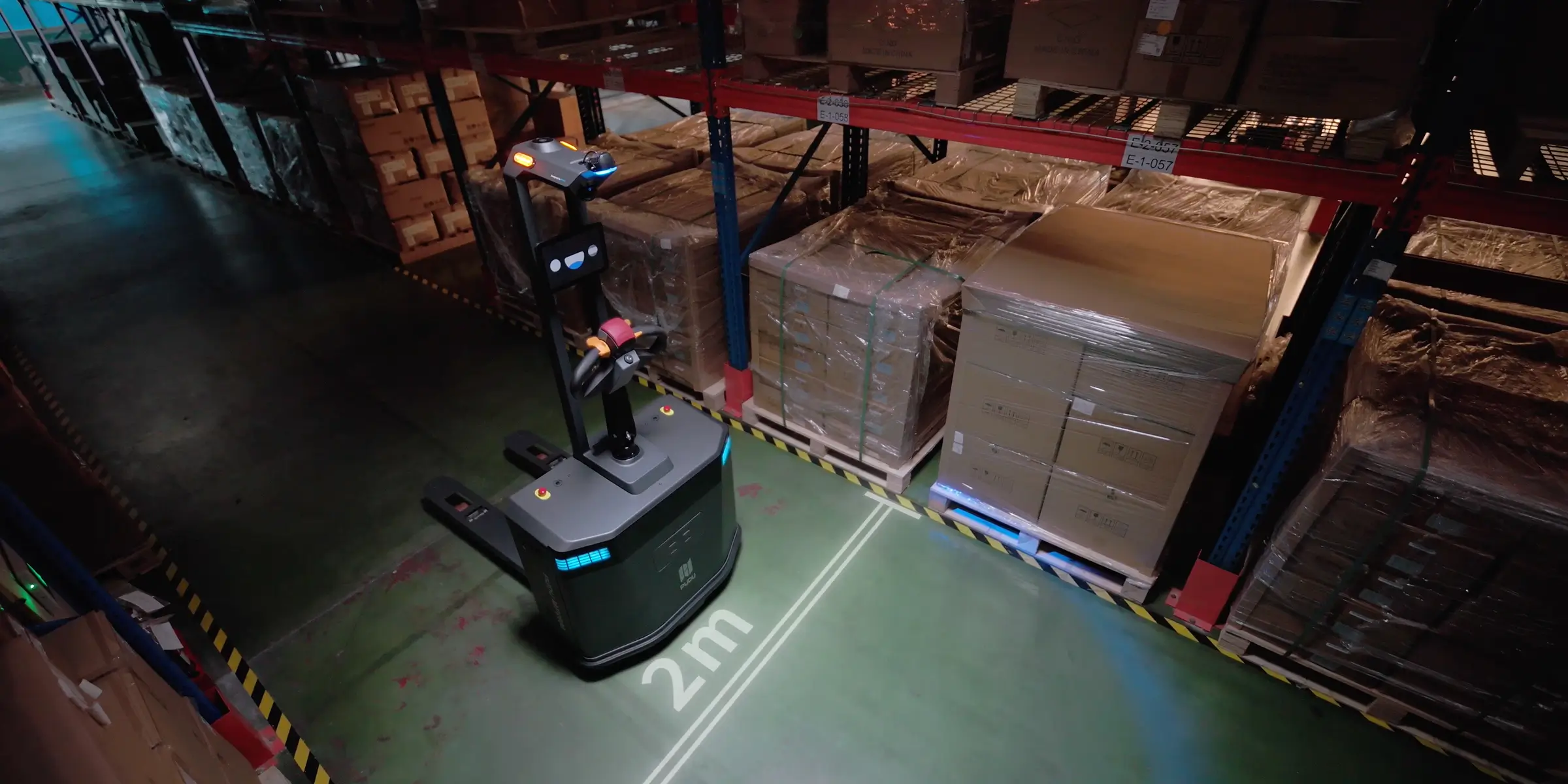

More Storage in Narrow Aisles
Performs 90° pallet pickup in aisles as narrow as 2 m wide, with a pallet clearance of up to 15 cm. Maximizes storage space and supports business growth without facility expansion.

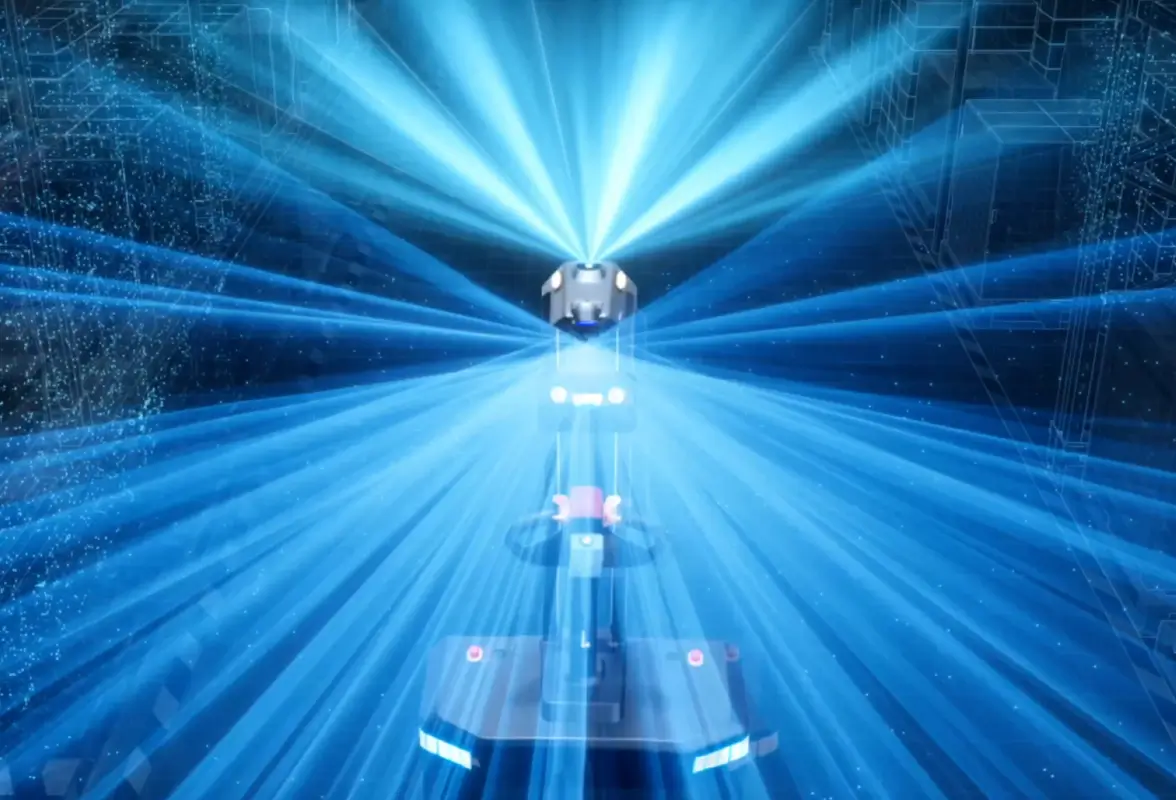

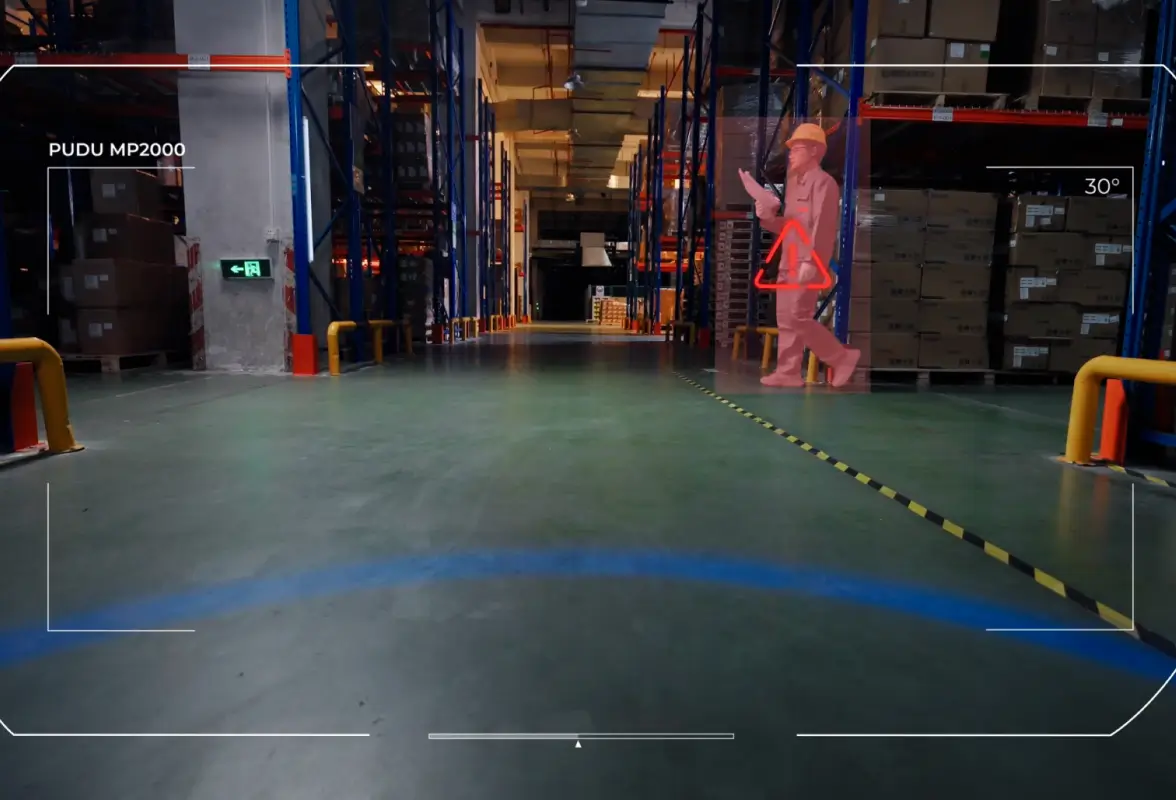

Omni-Sense Safety
Depth cameras, 3D LiDAR, and other sensors form a multi-layered safety system that detects people, equipment, and obstacles in real time. Even in complex mixed-traffic environments, the system identifies risks, avoids hazards, and issues clear warnings.
360° perception for safer navigation
Dynamic obstacles, intelligent avoidance and stopping
Static obstacles, autonomous rerouting

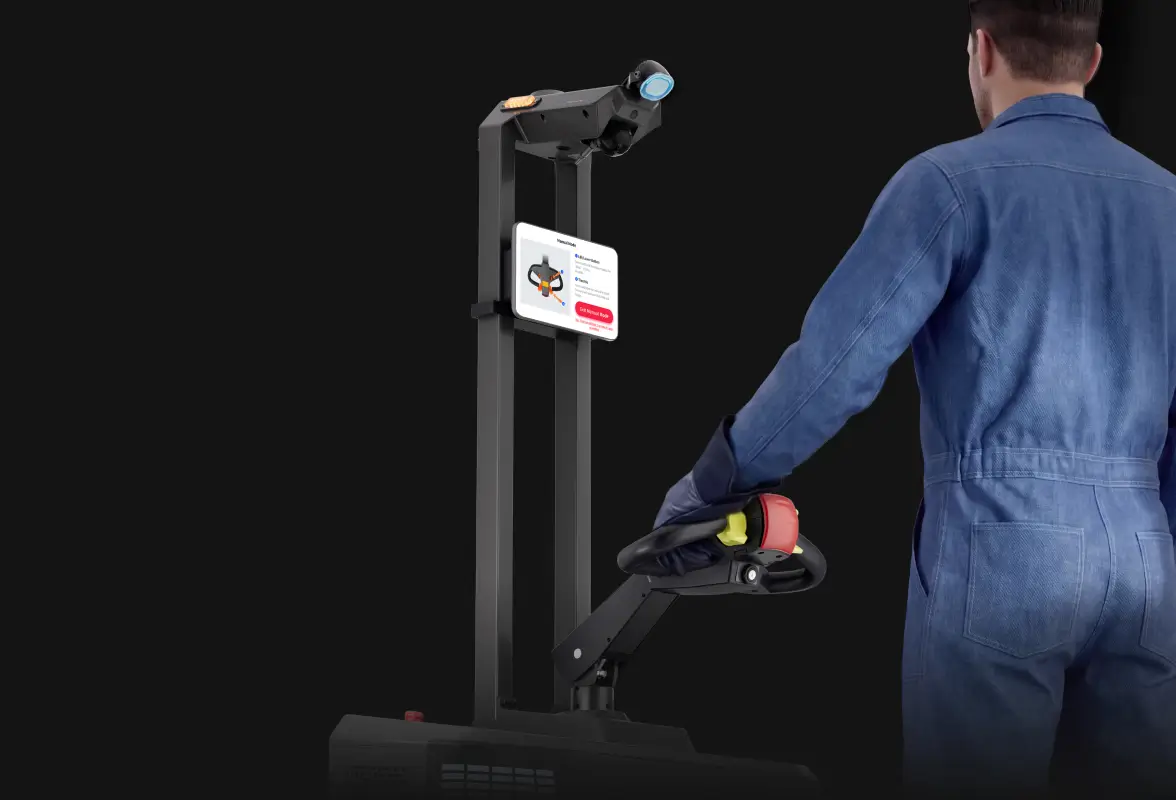

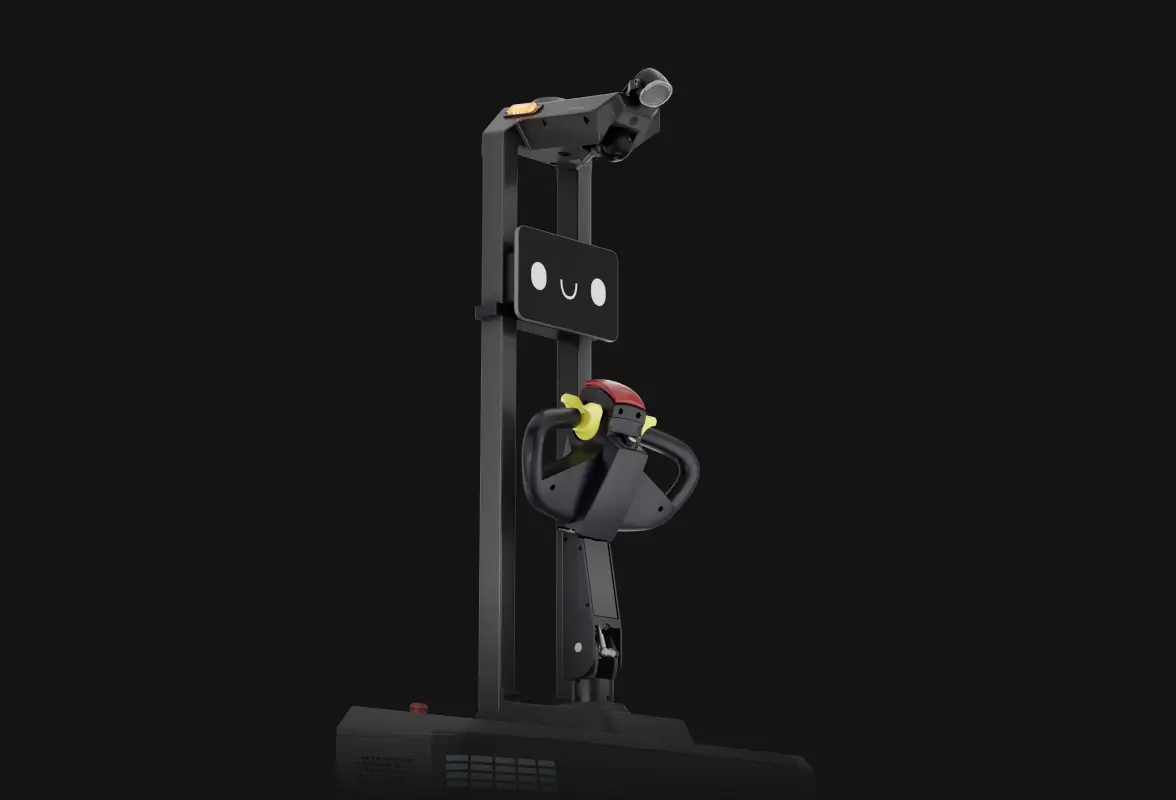

Flexible Dual Operating Mode
Switches seamlessly between autonomous and manual mode, executing routine tasks independently while allowing operator support when needed, for reliable, continuous operation.

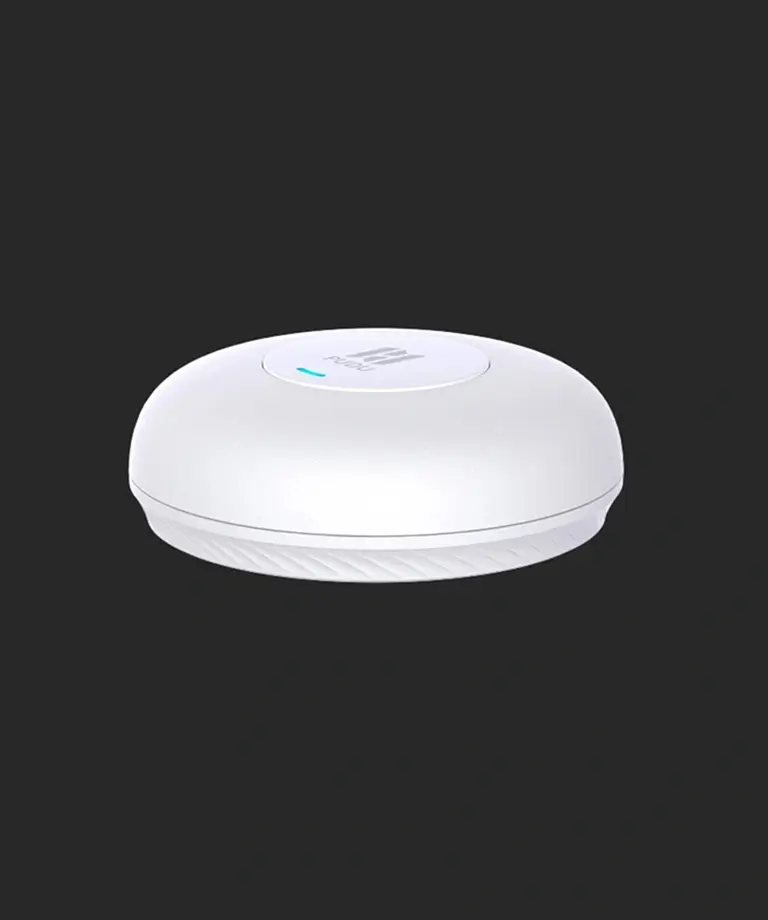

IoT Integration and Control

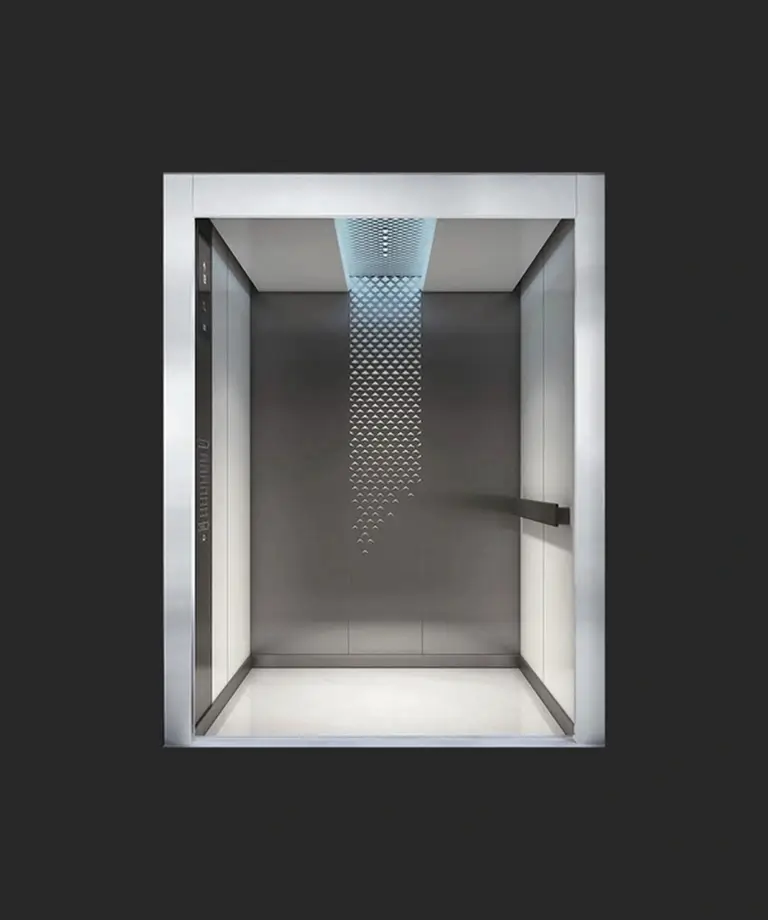

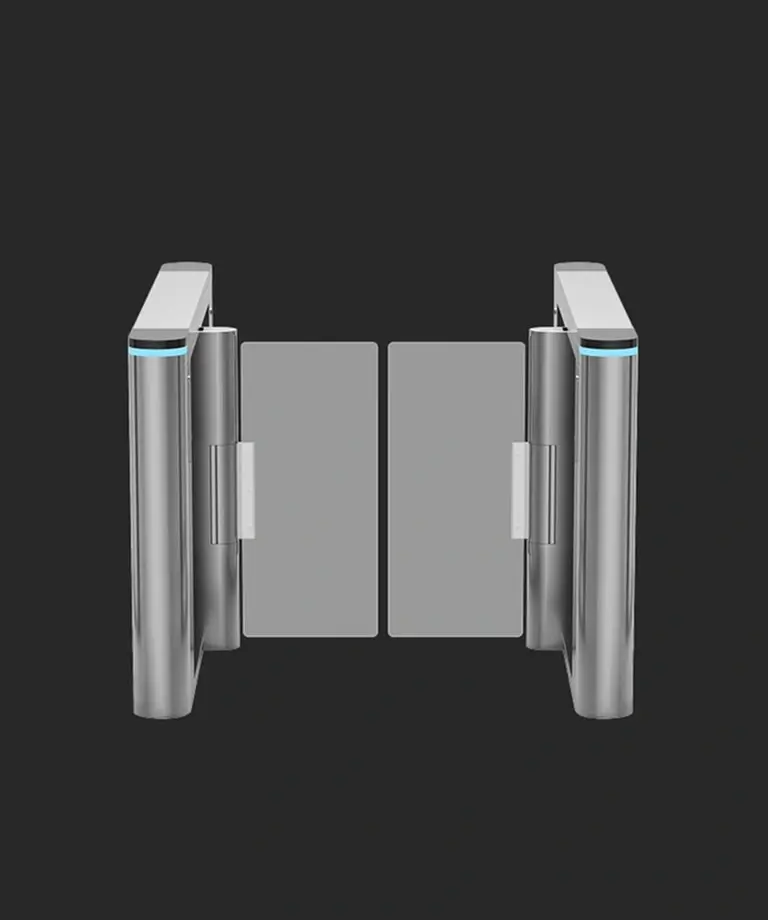

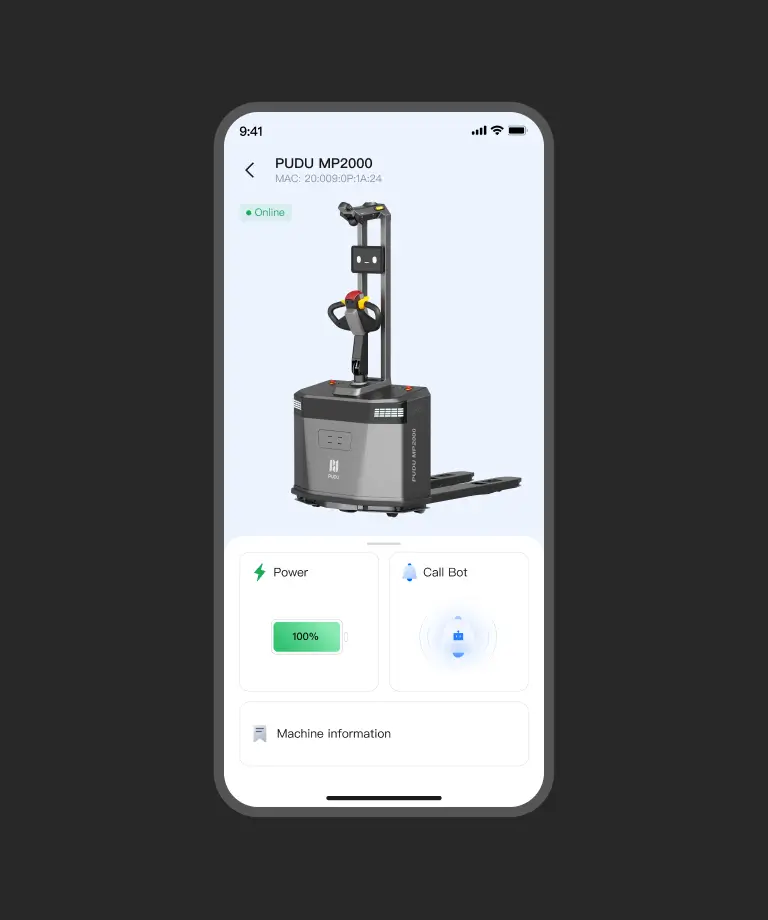

Tasks can be dispatched via PUDU Link, APIs, voice commands, or task buttons. Optional integration with elevator control, automatic doors, and other IoT devices enables flexible task triggering and device coordination.
PUDU MP2000 Core Applications
Powering material flow at critical touchpoints

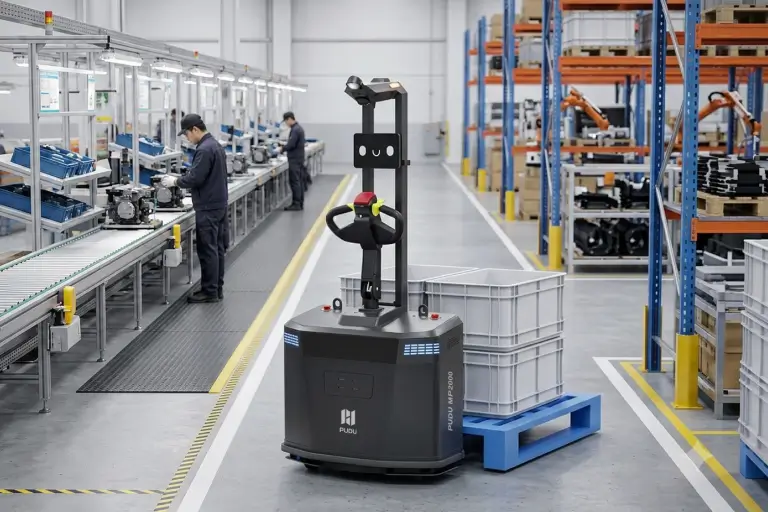

Production
Material supply along the production line

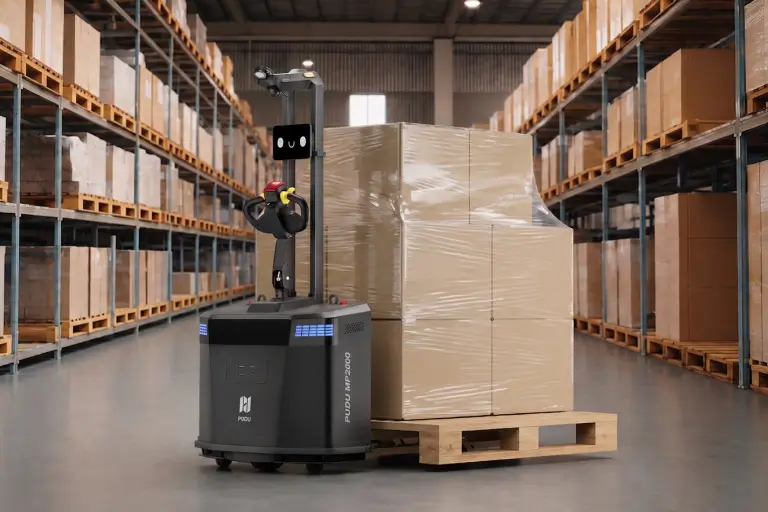

Warehouse
Pallet handling
Logistics
Transfer in distribution center

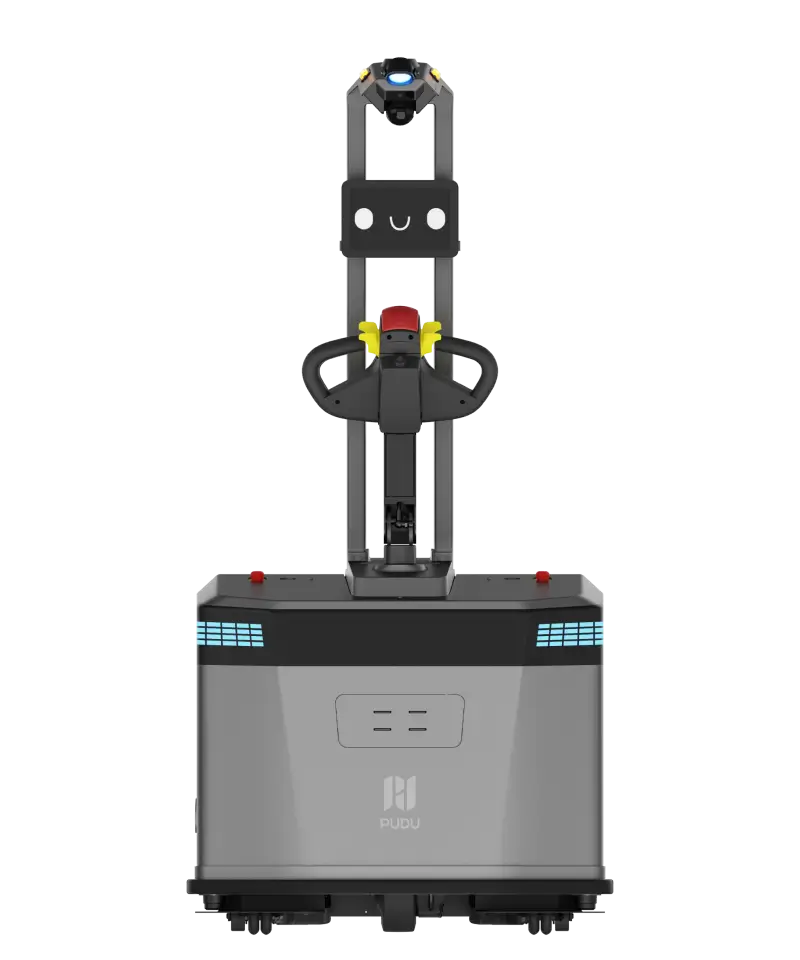

Product Overview – MP2000 Standard
ModelMPID01-M
Overall dimensions1585 x 910 x 1870 mm (62.40 x 35.83 x 73.62 inches)
Max. load2000 kg (4409.25 lbs)
Max. lift height200±5 mm (7.87±0.20 inches)
Lowered fork height80±5 mm (3.15±0.20 inches)
Fork outer width620 mm (24.41 inches)
Right-angle stacking aisle width≤2000 mm, 1200*1000 mm Pallet (1200 along forks) (≤78.74 inches, 48*40 inches Pallet (48 along forks))
≤1960 mm, 1200*800 mm Pallet (1200 along forks) (≤77.17 inches, 48*31.5 inches Pallet (48 along forks))
≤1960 mm, 1200*800 mm Pallet (1200 along forks) (≤77.17 inches, 48*31.5 inches Pallet (48 along forks))
Navigation method3D LiDAR-SLAM, VSLAM
Max. surmountable height/gap10 mm (0.39 inch) / 35 mm (1.38 inches)
Gradeability3° / 8° (Full Load / Unloaded)
Charging timeAbout 2 h, input voltage 200V~240Vac
About 3.2 h, input voltage 100V~120Vac
About 3.2 h, input voltage 100V~120Vac
Battery life12 h (None load)
6 h (Max. load)
6 h (Max. load)
Product Overview – MP2000 Narrow Fork
ModelMPID01-N
Overall dimensions1585 x 910 x 1870 mm (62.40 x 35.83 x 73.62 inches)
Max. load capacity2000 kg (4409.25 lbs)
Max. lift height200±5 mm (7.87±0.20 inches)
Fork height in lowest position80±5 mm (3.15±0.20 inches)
Aisle width for right-angle stacking≤2000 mm, 1200*1000 mm pallet (1200 along the forks) (≤78.74 inches, 48*40 inches pallet)
≤1960 mm, 1200*800 mm pallet (1200 along the forks) (≤77.17 inches, 48*31.5 inches pallet)
≤1960 mm, 1200*800 mm pallet (1200 along the forks) (≤77.17 inches, 48*31.5 inches pallet)
Fork outer width550 mm (21.65 inches)
Navigation method3D LiDAR-SLAM, VSLAM
Max. obstacle height / gap10 mm (0.39 inch) / 35 mm (1.38 inches)
Gradeability3° / 8° (fully loaded / unloaded)
Charging timeApprox. 2 h, input voltage 200V~240Vac
Approx. 3.2 h, input voltage 100V~120Vac
Approx. 3.2 h, input voltage 100V~120Vac
Battery life12 h (unloaded)
6 h (max. load)
6 h (max. load)
