AI-Native Mid-Size Disc Scrubber-Dryer Robot
Dual disc brushes with 25 kg scrubbing pressure
Fast-spinning dual disc brushes combined with a constant downward pressure of 25 kg deliver powerful deep cleaning, effectively removing stubborn stains and dirt.
Quick-Change Disc Brush Design
Magnetic attachment ensures quick alignment, installation, and removal.
PUDU VSLAM+
Unlimited by space, unmatched in cleanliness
Powered by a combination of VSLAM and LiDAR, the robot navigates complex environments with high accuracy, without requiring QR codes. Combined with AI-driven spot cleaning, it covers 5,000–8,000 m², enabling smart upgrades in large-scale spaces.

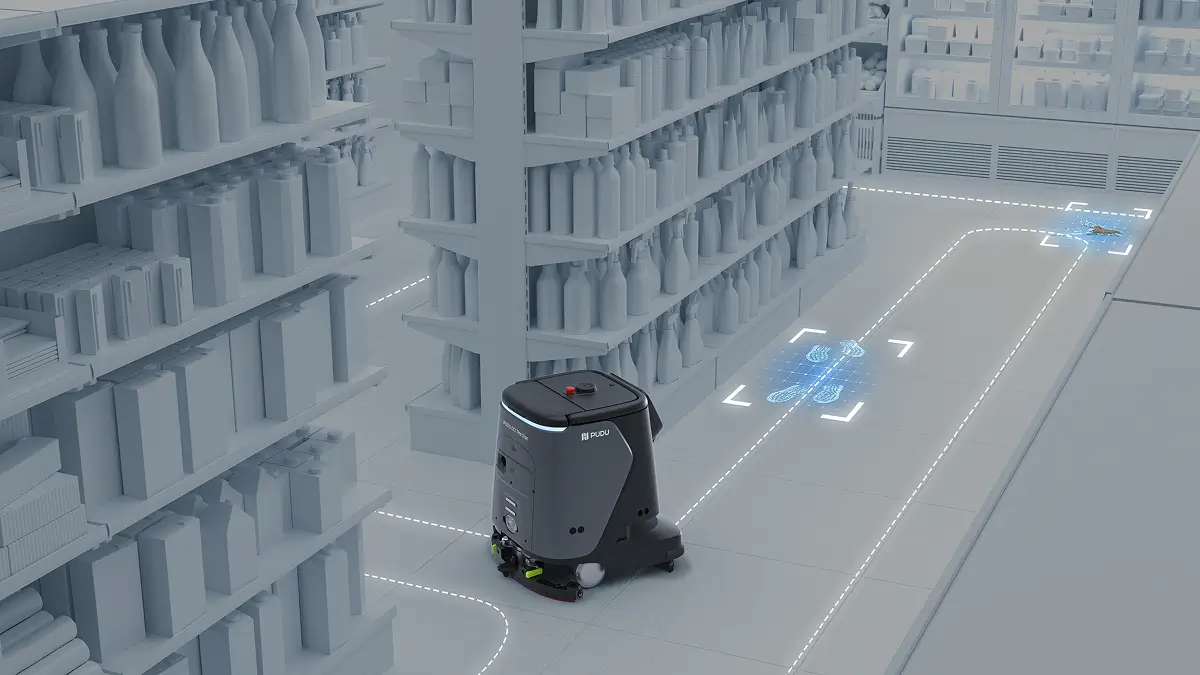

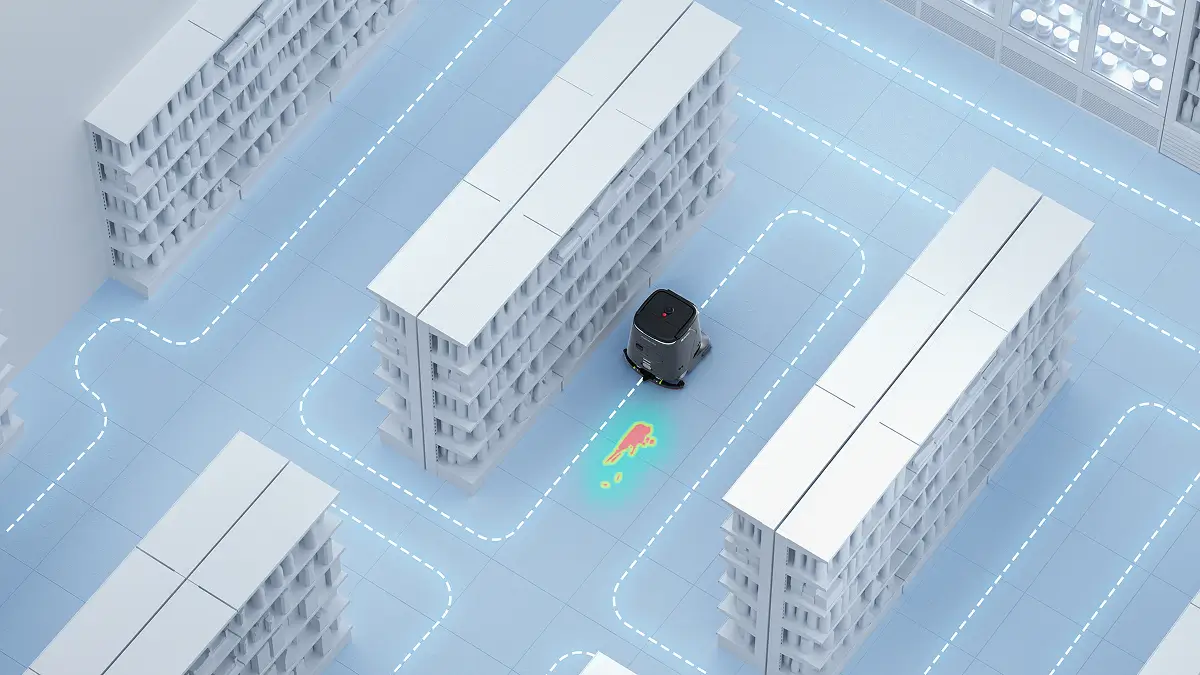

AI Spot Scrubbing
Targeted cleaning for precision and efficiency: by combining AI image recognition with dynamic route planning, the system detects common wet spots in real time during inspections — such as spilled coffee, sauces, and puddles — and instantly generates optimal cleaning routes. With a cleaning capacity of 1,500–3,000 m²/h, this ensures faster response times and more efficient coverage.

AI Cleaning Intensity Control
Stubborn stain detection: detects stubborn stains and increases cleaning power where needed, for deeper and more thorough cleaning.
Floor cleanliness monitoring: detects the cleanliness level and automatically switches between modes — eco mode for clean zones, deep cleaning for dirty spots — to optimize energy and water consumption.

AI Real-Time Cleaning Performance Detection
The CC1 Pro Disc features the world’s first rear-facing AI camera to monitor cleaning performance in real time. It detects remaining stains, activates spot post-cleaning, and generates heatmaps after each task for clear insight into cleaning results.

AI Component Self-Monitoring
Real-time monitoring eliminates inefficient cleaning: the rear AI system of the CC1 Pro Disc continuously monitors cleaning components, detects maintenance issues causing secondary contamination, and activates automatic marking, post-cleaning, or self-cleaning — for a reliable and intelligent cleaning cycle.

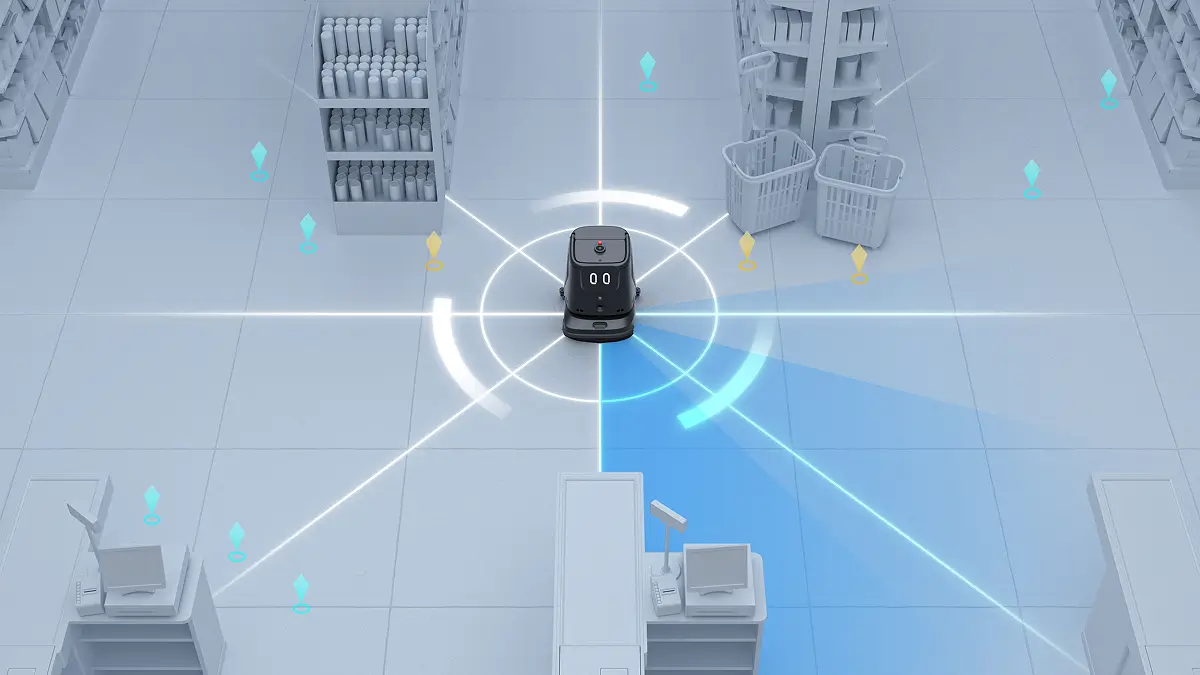

Omni-Sense Safety
The CC1 Pro Disc features an AI-driven perception system that continuously detects and avoids static and moving obstacles — such as barriers, warning signs, and cordons.
It also recognizes and avoids carpet zones during scrubbing, ensuring safe operation.

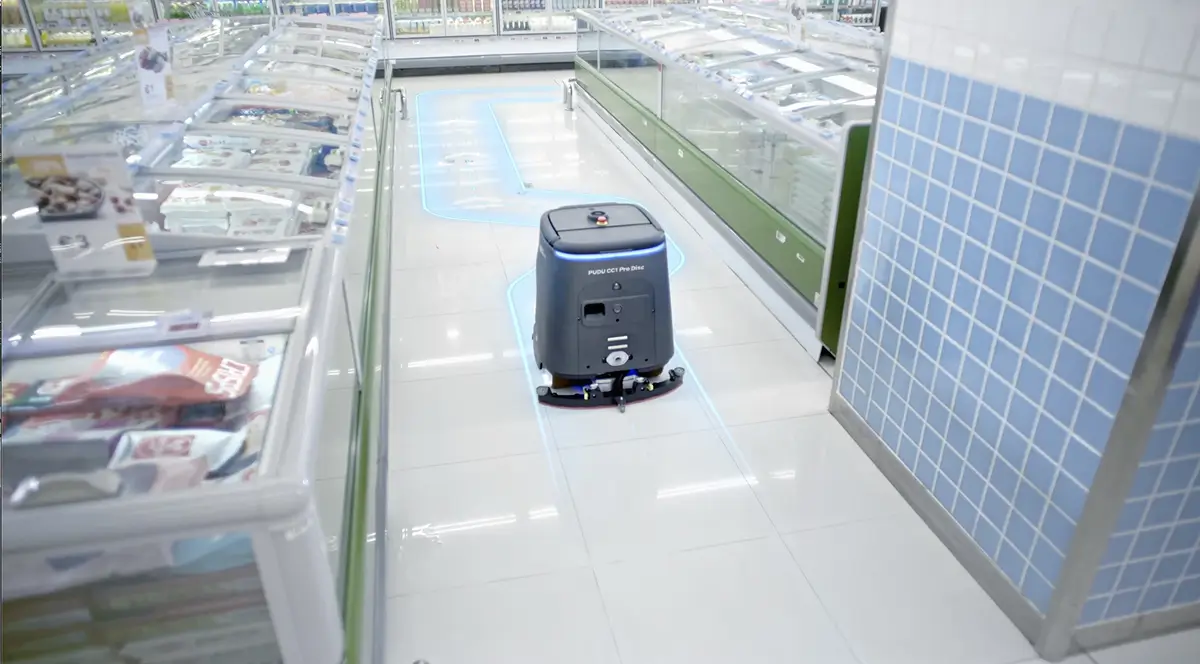

68 cm Path Clearance
In retail environments, the compact design enables agile maneuvering and avoidance of shopping carts, boxes, and temporary obstacles.

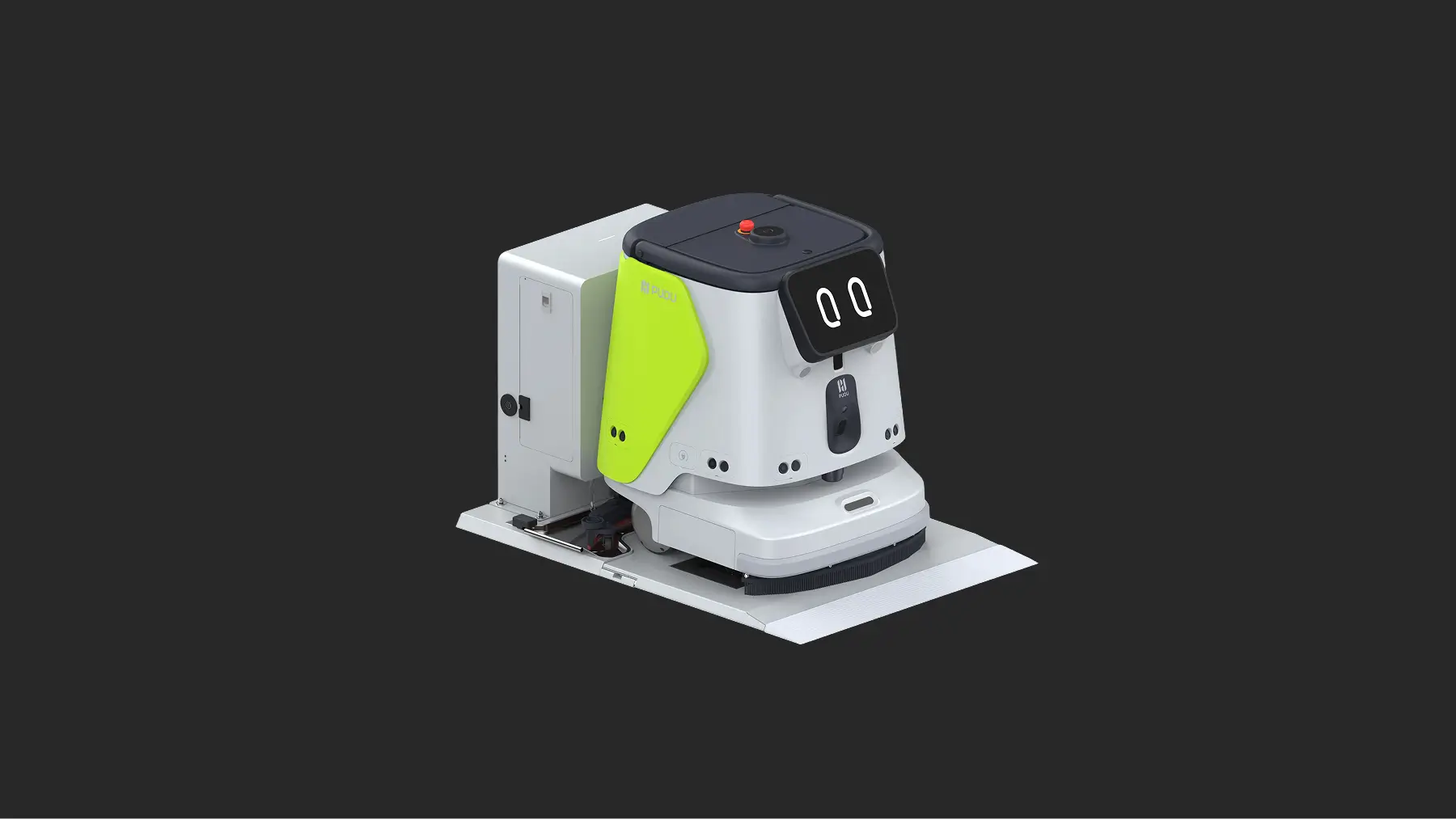

Workstation Series
Automatic water refilling and draining: automatically manages water refilling and draining, for a more efficient and effortless cleaning experience.
Automatic charging: automatically returns to the docking station for charging, ensuring longer deployment duration.
Self-cleaning: supports self-cleaning of the suction mouth.

From Data to Actionable Insights

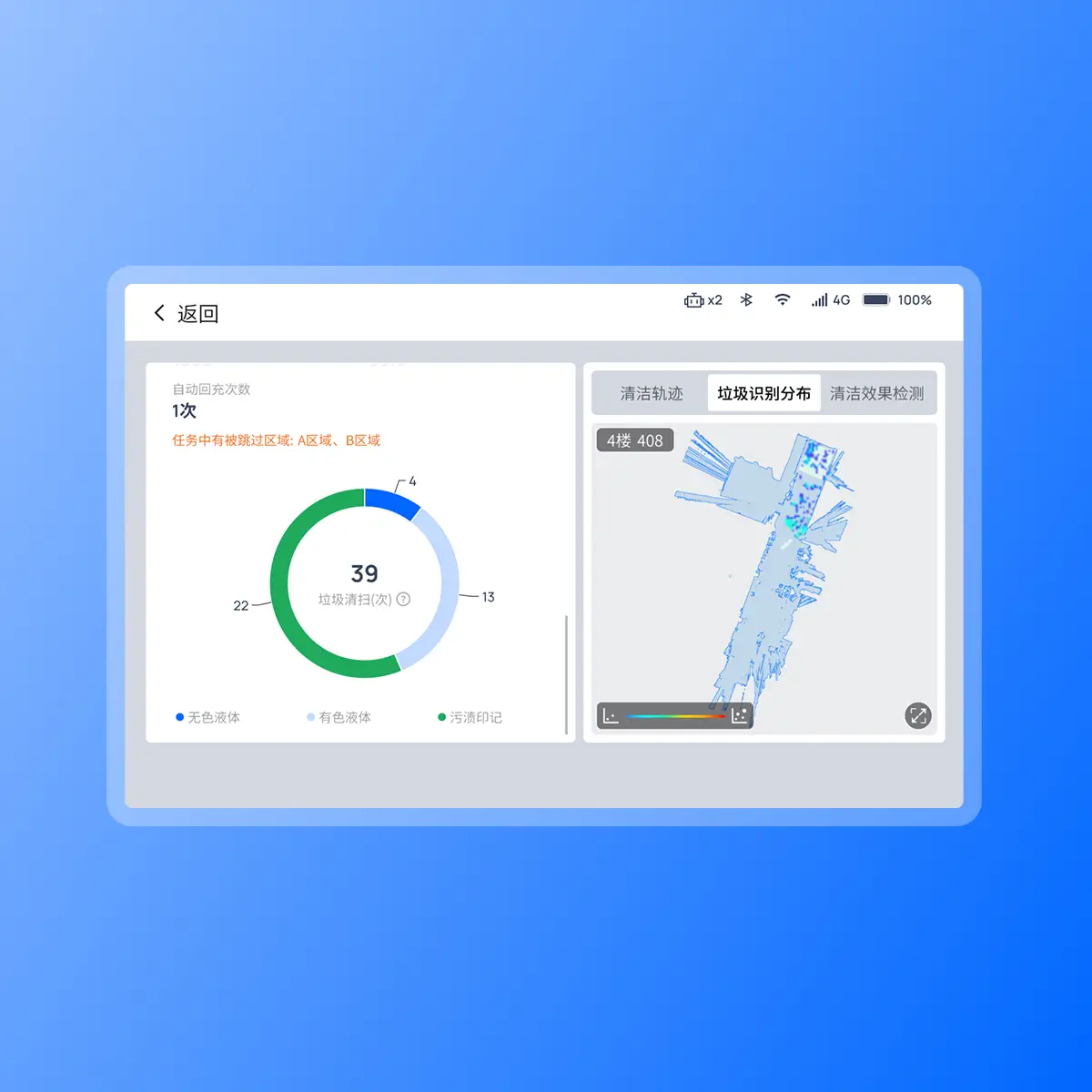

Waste Hotspot Map & Cleaning Performance Heatmap
Waste hotspot map:
Shows zones with the highest waste accumulation, enabling precise scheduling of cleaning work.
Cleaning performance heatmap:
Highlights stubborn stains that remain after multiple cleaning cycles, supporting manual inspection and additional cleaning.

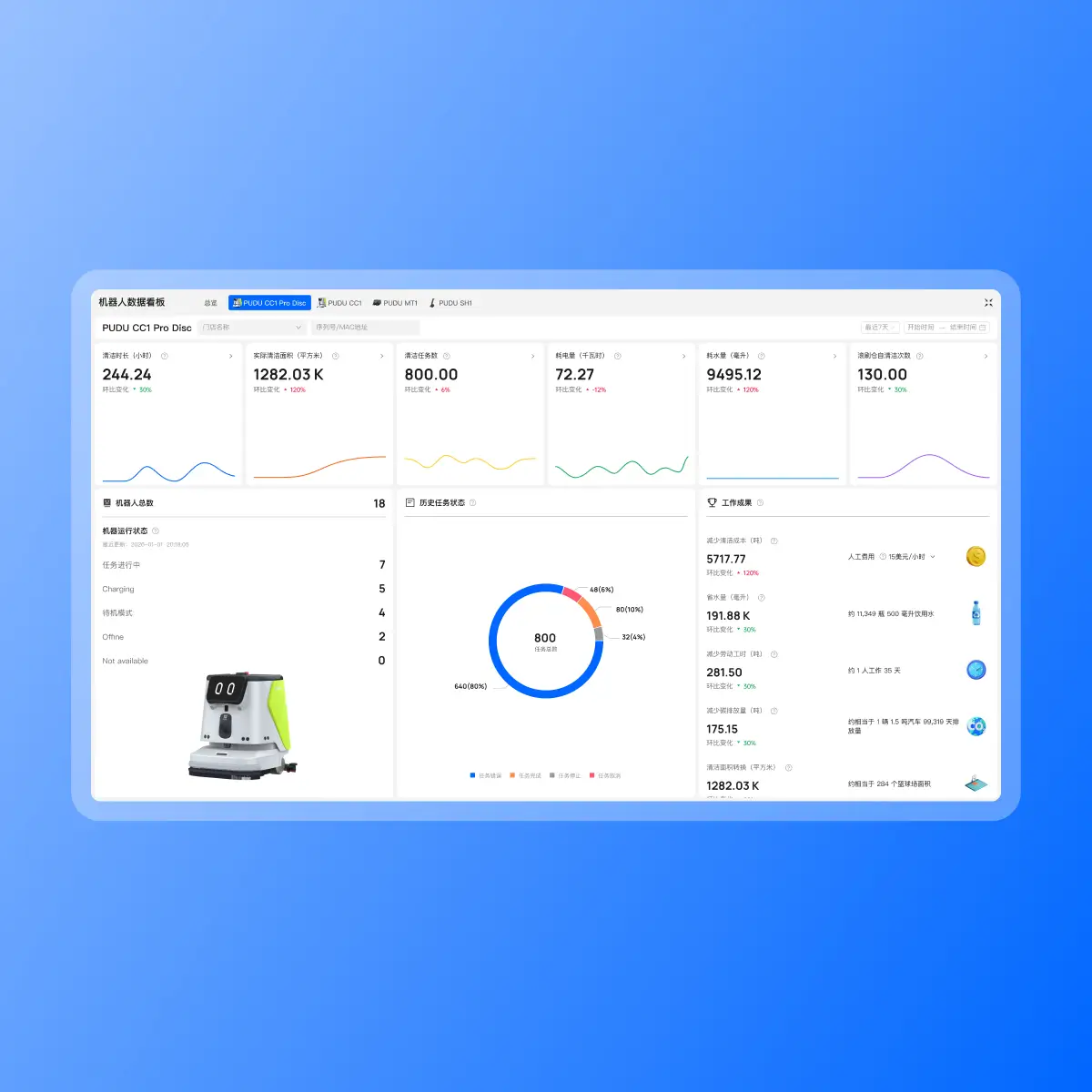

Operations Dashboard
Visualizes key metrics — task execution and completion rates, maintenance frequency — and provides real-time alerts for equipment anomalies.

Excellent IoT Compatibility, Exceeding Your Expectations
No cumbersome system integrations needed: the robot can be modularly integrated into the production process and deployed efficiently.

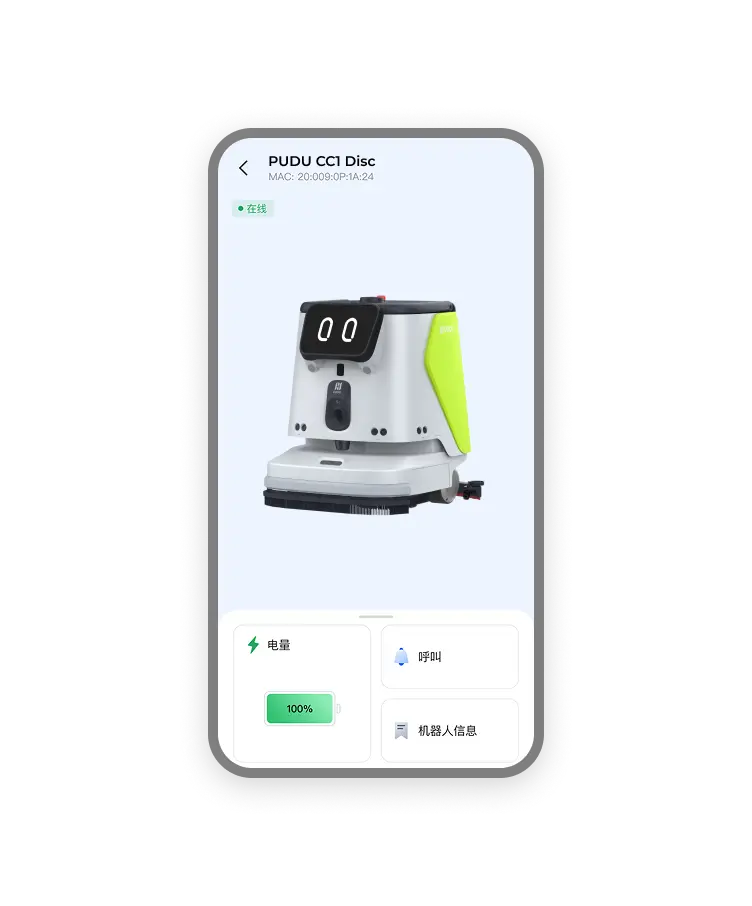

Management via the Pudu Link app

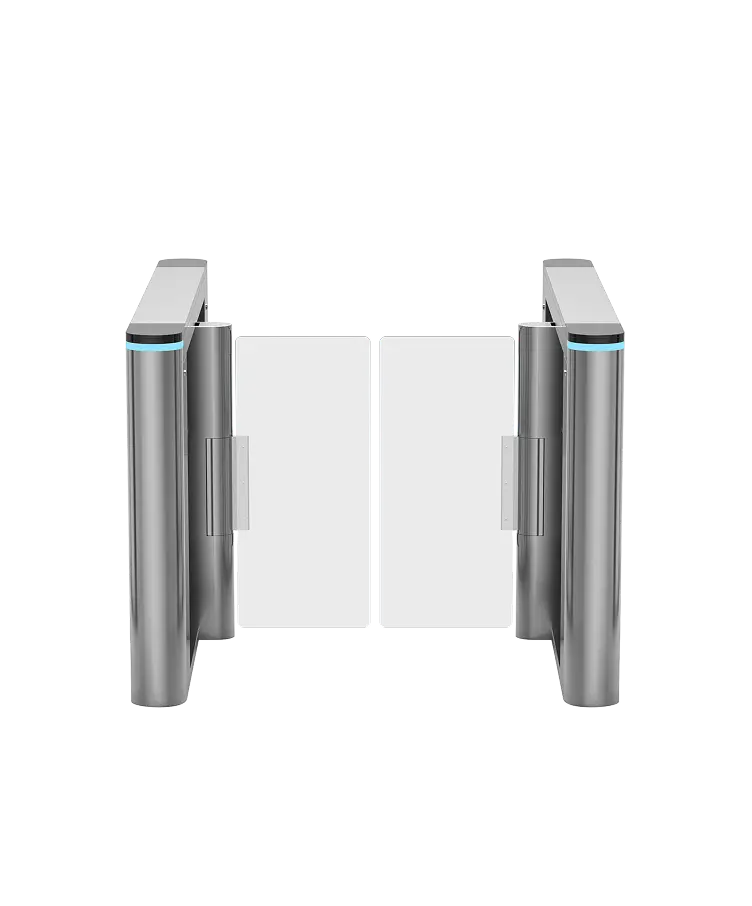

E-gate control

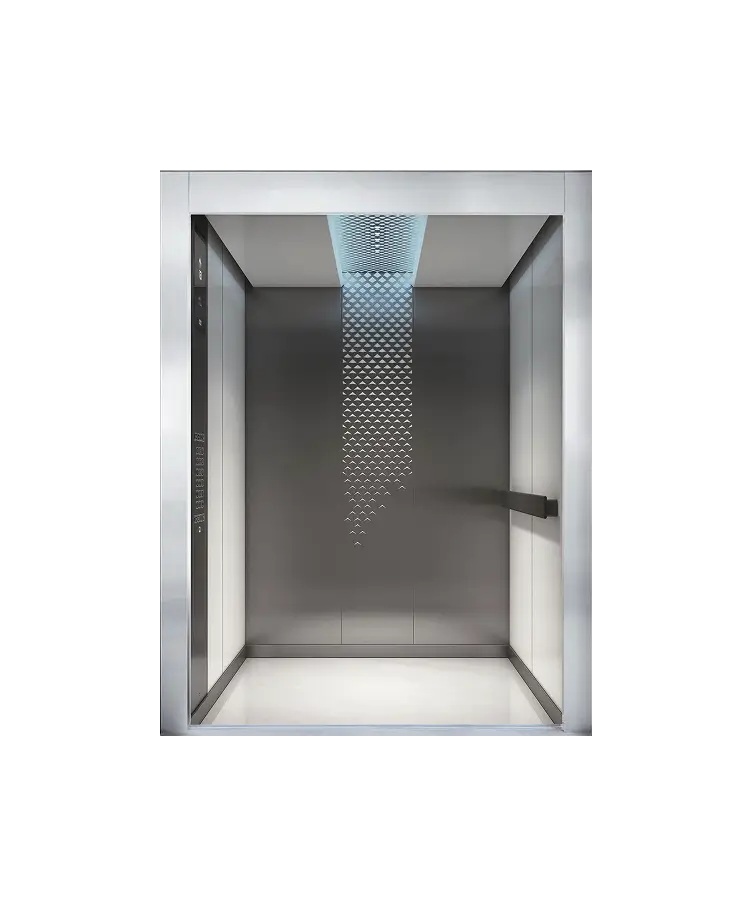

Elevator control

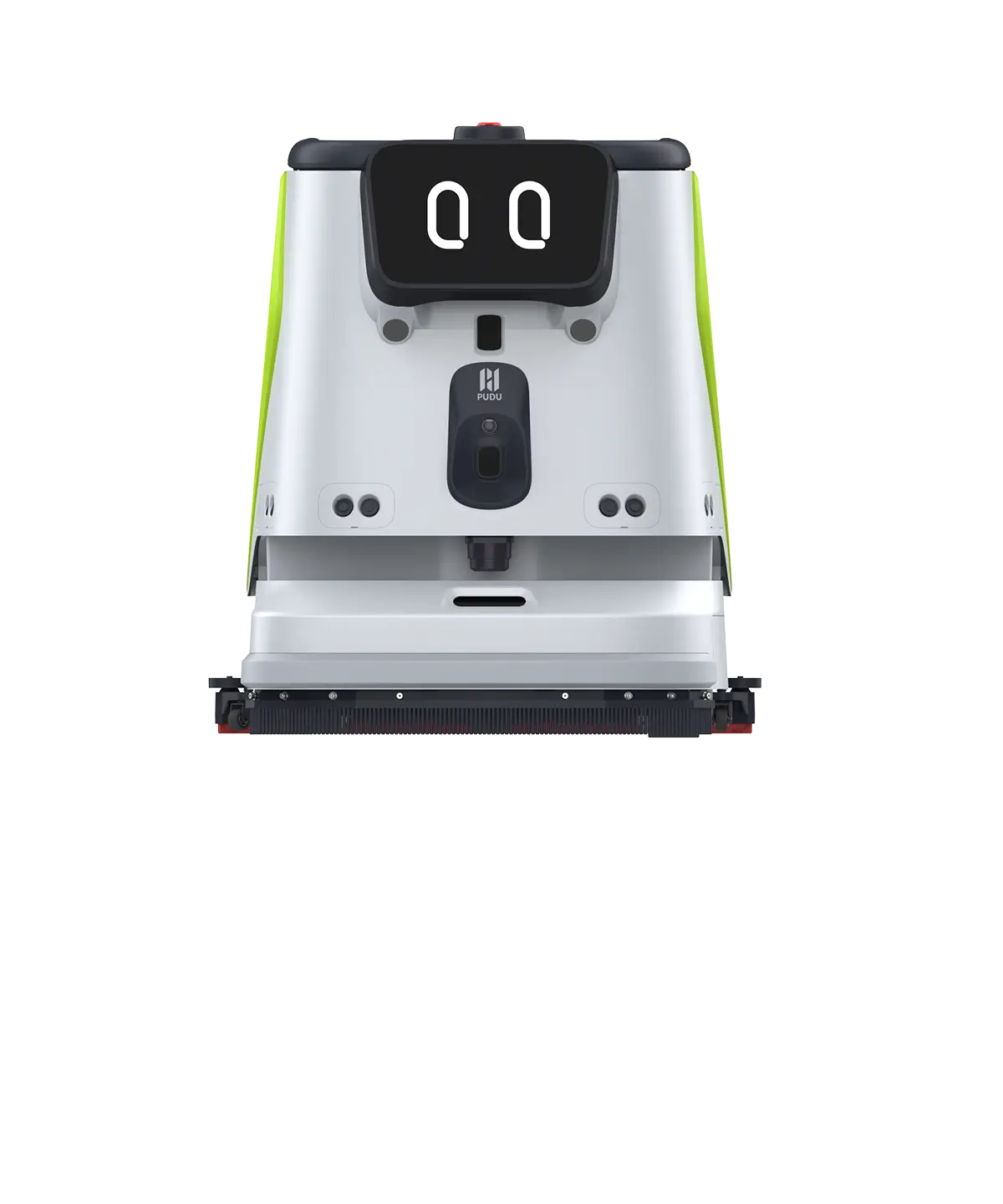

Product Overview
Battery Capacity69 Ah
Charging TimeAbout 4.5 h
Run-timeScrubbing: Up to 5.3 h (3.8 h+ in Standard Mode)
Cleaning CapabilitiesScrubbing, Polishing
Weight80 kg
Dimensions629 x 552 x 695 mm
Display10.1-inch LCD screen
Cruising Speed0.2 m/s ~ 1.2 m/s (0.66 ft/s ~ 3.94 ft/s) (adjustable)
Min. Path Clearance68 cm
Cleaning Width380 mm
Cleaning Efficiency700-1000 ㎡/h (837.19-1,195.99 yd²/h) (All-Covered Scrubbing) / 1500-3000 ㎡/h (1,793.99-3,587.97 yd²/h) (Spot Scrubbing)
Water Tank Capacity (Scrubbing)Clean Water Tank: 15 L (3.96 gal), Dirty Water Tank: 15 L (3.96 gal)
CommunicationSupports 4G, Wi-Fi, Bluetooth & LoRa Customization (Optional)
Auto Charging & Water Refill/DrainSupported (Requires Optional Docking Station)
