Flashbot Arm

Semi-Humanoid Embodied AI Service Robotoonmaak customizable for each family member.

Next Generation Embodied AI for Services

FlashBot Arm, developed by Pudu X-Lab, features an innovative design combining specialized delivery capabilities with humanoid manipulation. By integrating advanced, built-in intelligent technologies, it achieves groundbreaking capabilities for autonomous task performance, ensuring unprecedented intelligent service experiences.

Main Benefits

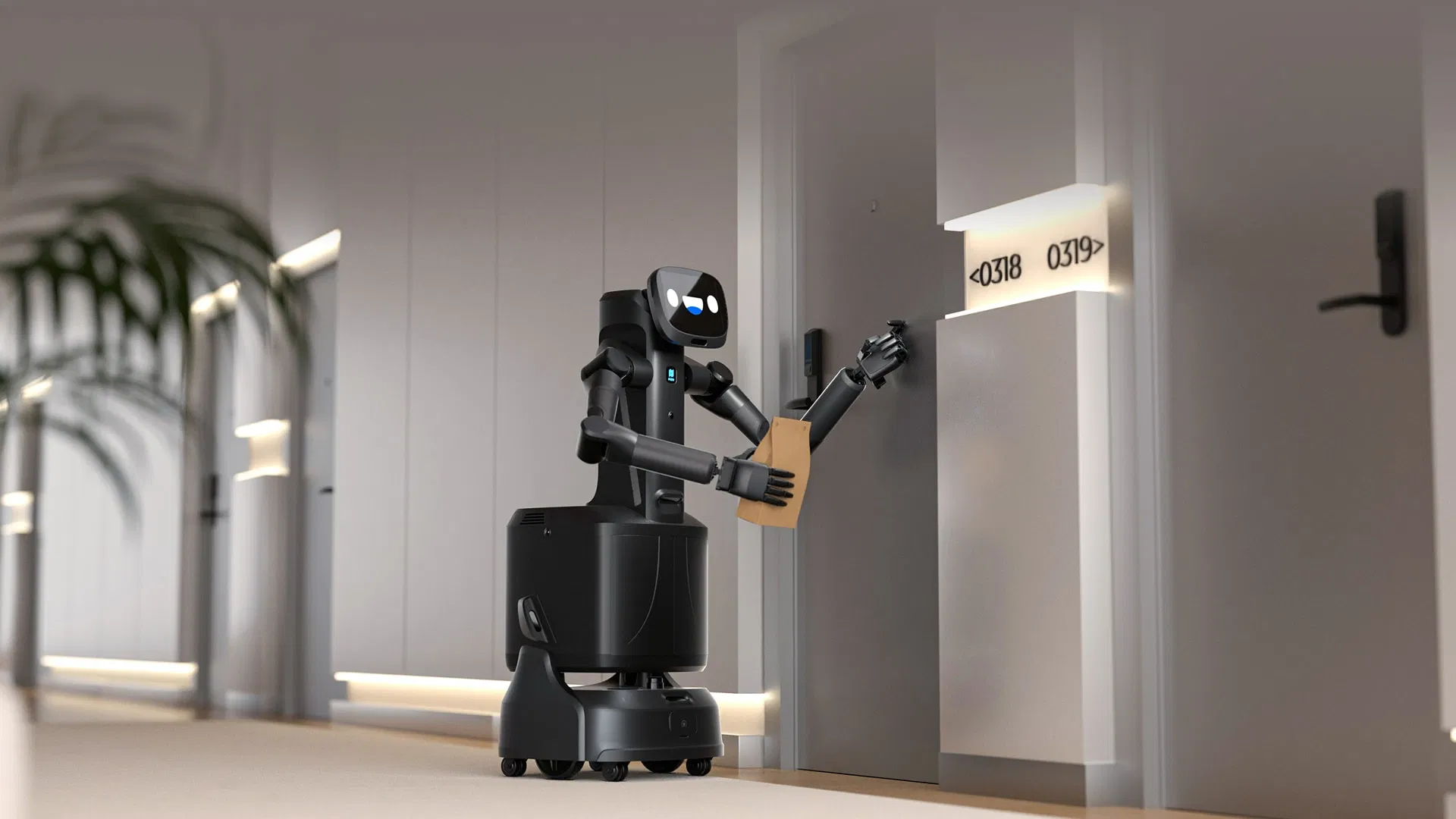

  • Fully autonomous navigation and task performance: Navigates independently through the environment, operates elevator buttons, card readers, and doors, and executes tasks accurately – without expensive on-site modifications.

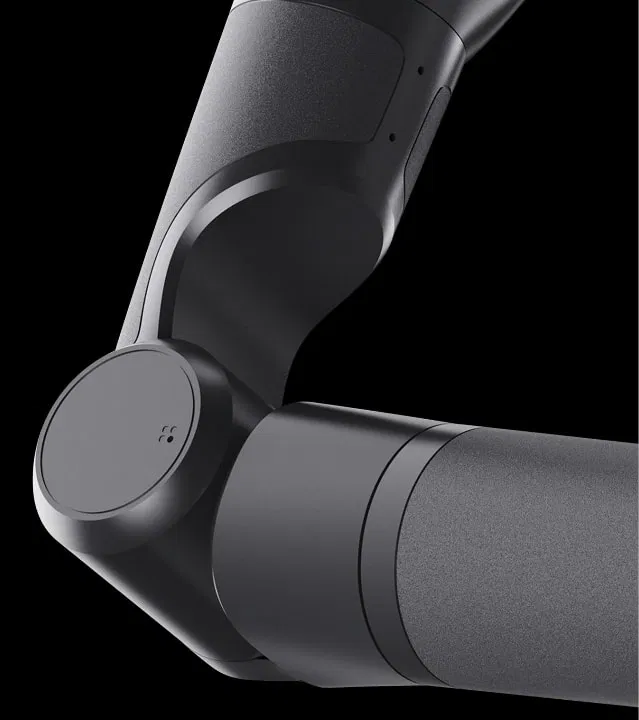

  • Two robotic arms with grippers: Equipped with two robotic arms with 7 degrees of freedom (7-DOF) and advanced PUDU DH11 grippers for highly precise operations with a reach of up to 2 meters.

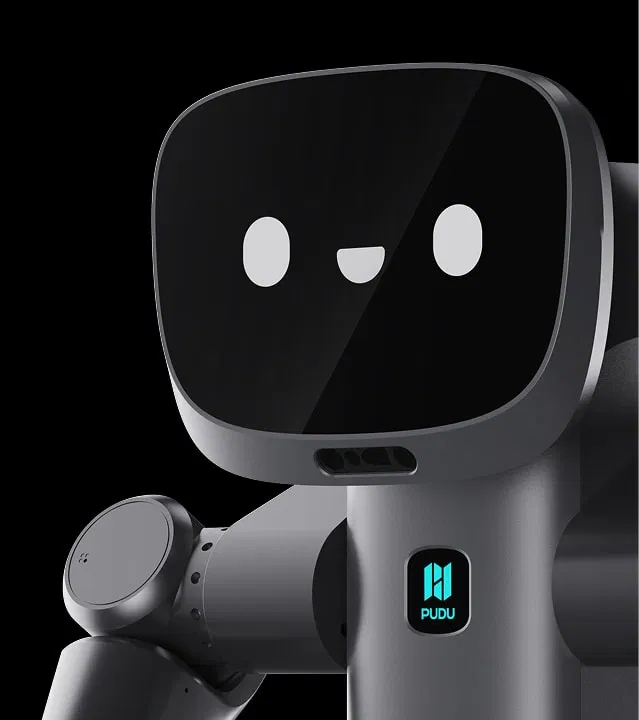

  • Multi-modal interaction: Communicates via AI speech, facial expressions, and gestures for a natural and accessible user experience.
  • Comprehensive sensor system & smart algorithms: Equipped with 360° cameras, depth cameras, LiDAR, and a pressure-sensitive exterior, combined with intelligent force control. Detects obstacles instantly and stops automatically when necessary for safe interaction with people.
  • Precise 3D navigation: Utilizes VSLAM technology and omnidirectional vision for accurate mapping and reliable obstacle avoidance.
  • Smooth and efficient mobility: The independently suspended chassis ensures stable, shock-free movement and more efficient delivery.
  • Spacious, enclosed compartment: Design with two doors and 15 kg load capacity for secure delivery of goods.
  • Intelligent multi-robot collaboration: Works seamlessly with multiple robots for optimal task distribution and avoids collisions in busy environments.
  • Automatic charging: Returns autonomously to the charging station when the battery is low, ensuring the robot is always ready for use.

Product Specifications

Robotafmetingen (L × B × H)539 × 515 × 1440 mm (21,22 × 20,28 × 56,7 inch)
Draagvermogen15 kg
Oplaadtijd4 uur
Werktijd (zonder lading)8 uur
NavigatiemethodeVSLAM + LiDAR SLAM
Minimale doorgangsbreedte65 cm (25,59 inch)
Scherm10,1-inch touchscreen
Vrijheidsgraden arm/handArm: 7; Hand: 6 actief + 5 passief
Maximale reikwijdte1600 × 2000 × 1600 mm (63 × 78,7 × 63 inch)
