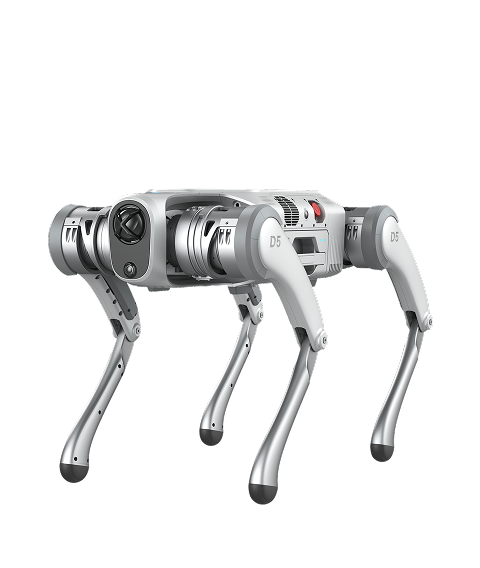

PUDU D5 Series
Industrial Autonomous Quadruped Robot Platform
NVIDIA-Powered Computing Platform
360° Perception for Safety Assurance
All-Terrain Mobility
All-Weather Adaptability
Intuitive Voice & Gesture Interaction
Compatible with Multiple Peripherals
For Complex Environments and Demanding Tasks
High-Performance Computing
Built on the NVIDIA Orin + RK3588 dual-processor architecture, delivering up to 275 TOPS of computing performance. A vapor-chamber system and dual-fan cooling ensure stable operation even under heavy, continuous workloads.

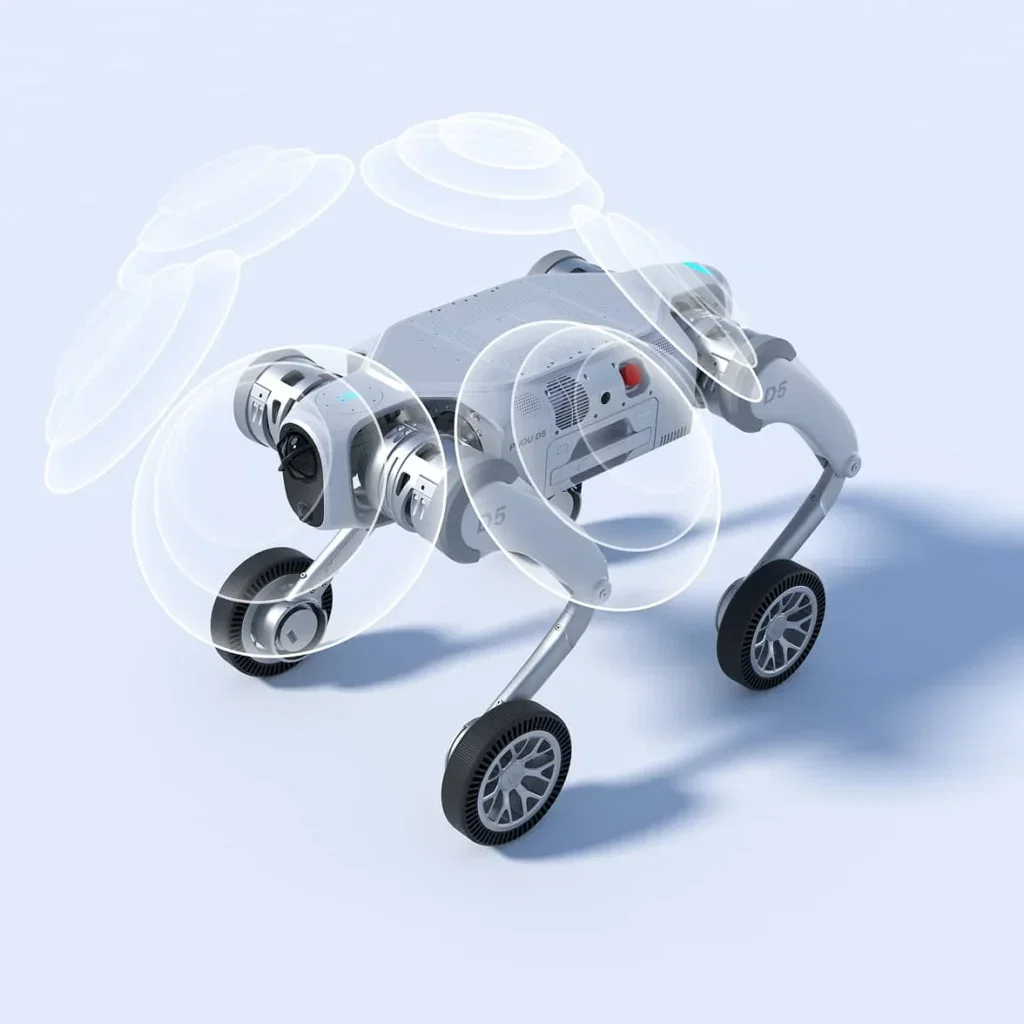

360° Precision Perception
Dual 192-line* spherical LiDARs combined with four fisheye cameras create a full-coverage perception system, enabling centimeter-level positioning and accurate dynamic obstacle avoidance.

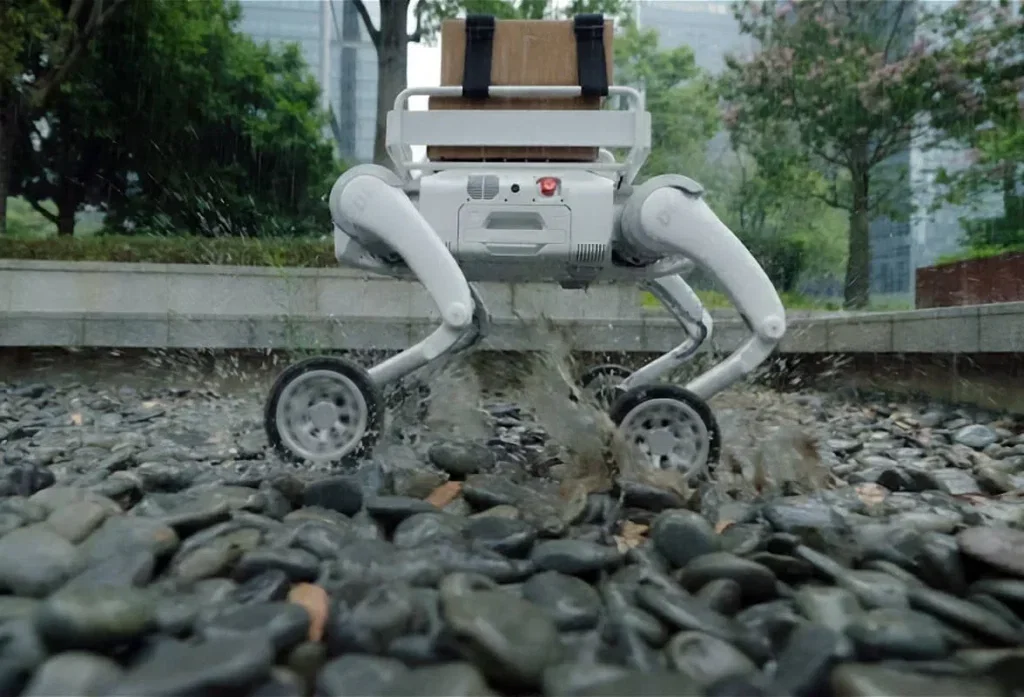

Robust Outdoor Performance
Thanks to its industrial design, the D5 Series is suitable for both indoor and outdoor applications. The robot is resistant to dust, water, and extreme temperatures, ensuring reliable operation in a wide range of weather and environmental conditions.
Flexible Task Execution
The PUDU D5 Series acts as a modular robot platform that can be extended with various sensors, cameras, and functional modules. This makes it suitable for a wide range of applications, including inspection, surveillance, monitoring, data collection, and support of operational processes.
More Than Just Navigation
With the ability to carry payloads and specialized modules, the D5 grows with your application. Whether it’s visual inspection, thermal measurements, or autonomous patrols, the D5 adapts to the task at hand.
Intuitive Interaction
The robot supports natural interaction forms such as voice and gesture recognition. This makes human-robot collaboration easy and efficient, even in complex operational environments.

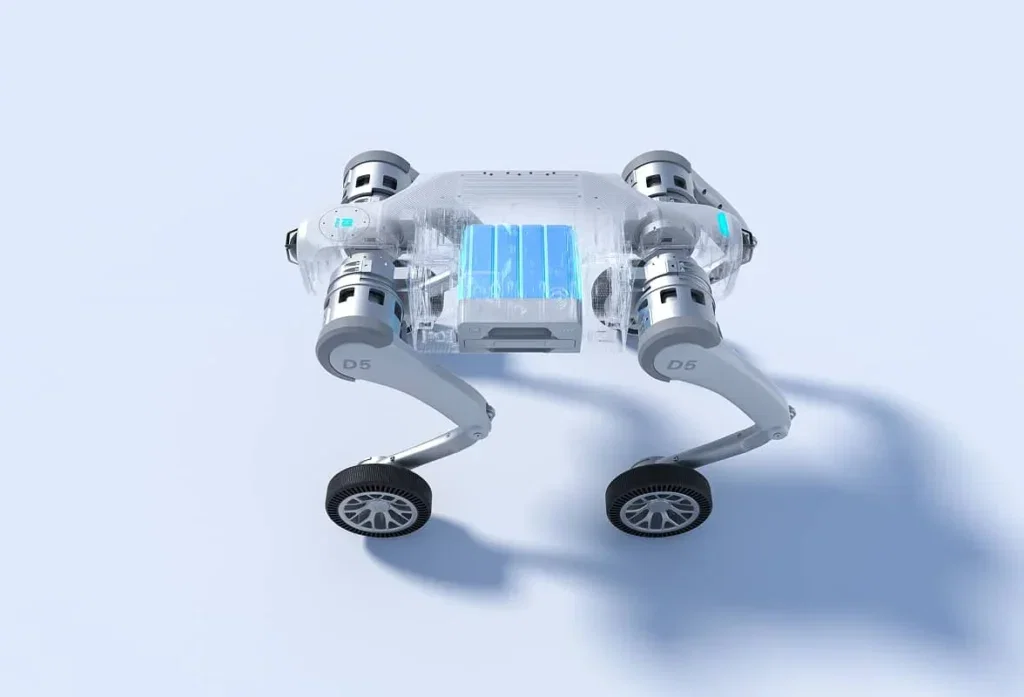

Industrial & Modular Design
The PUDU D5 Series is built for intensive daily use. Modular components simplify maintenance and minimize downtime.
Remote Vision & Control, Always in Command

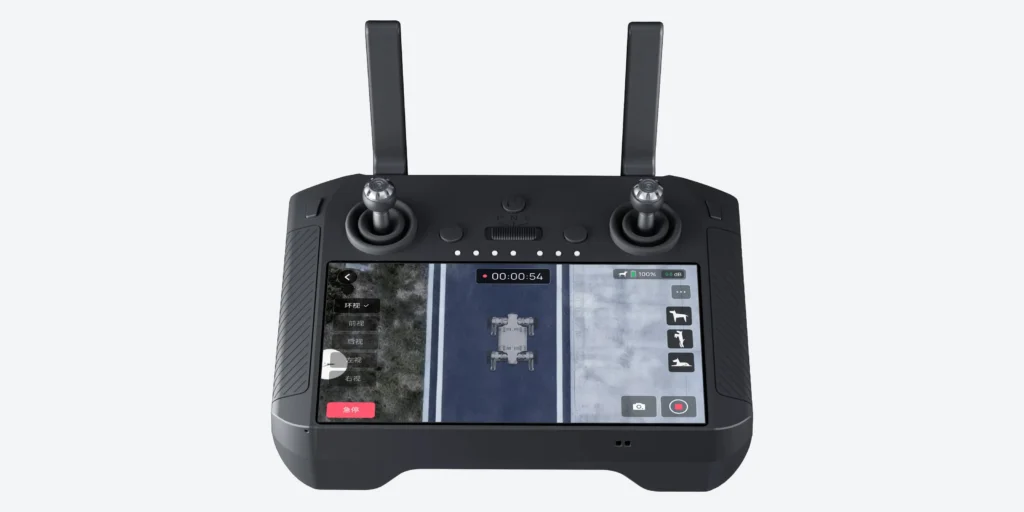

RCOS Remote Control System: Monitor real-time operating status and issue commands instantly.
Video Feed: Live panoramic views from cameras give you full visibility of the on-site environment.
Modular Expansion for Endless Possibilities
Open architecture supports add-ons such as delivery boxes and inspection gimbals—ideal for security, inspection, logistics, research, and more.

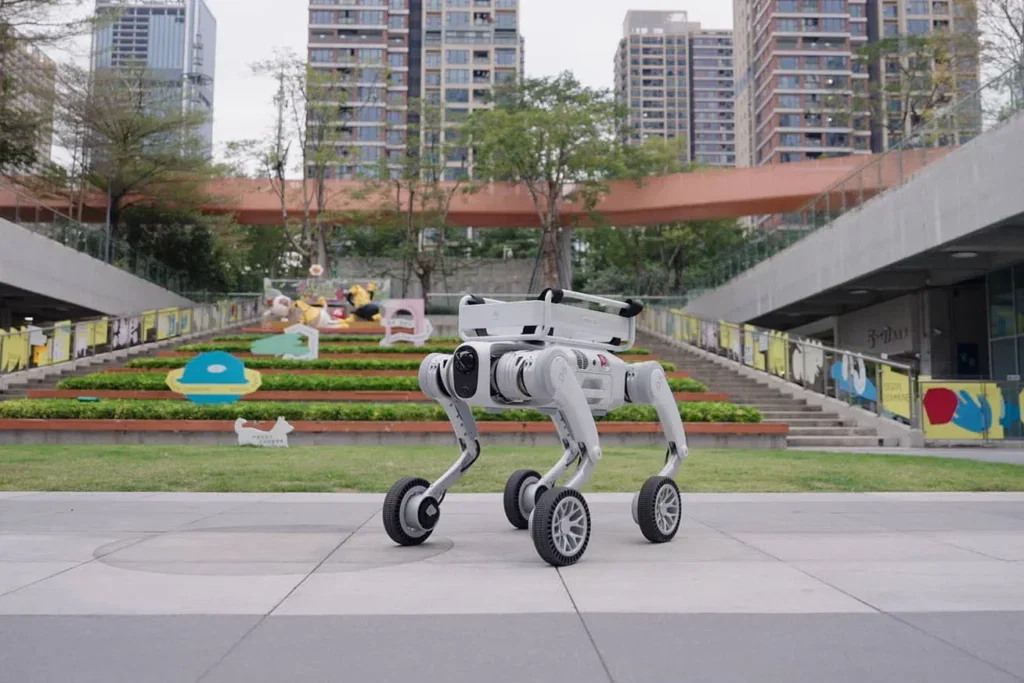

Metal Delivery Crate

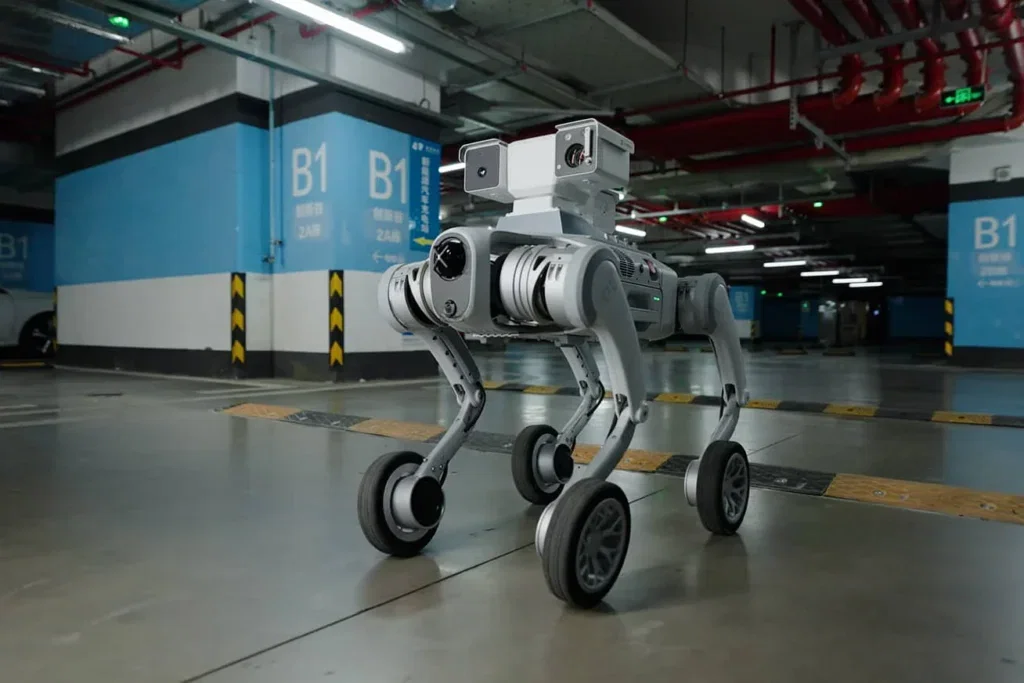

Inspection Kit

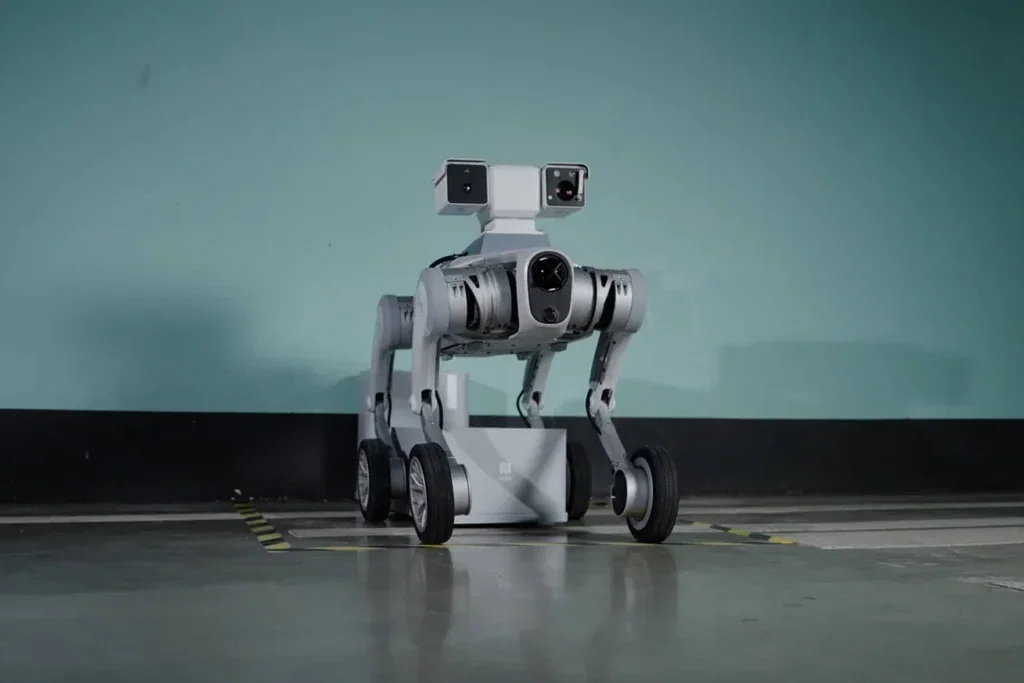

Charging Station
Pudu D5
- Standing Dimensions: 900 × 543 × 572 mm (35.4* 21.4*22.5 in)
- Weight (with Battery): 61 kg (134.5 lbs)
- Computing Platform: NVIDIA Jetson Orin AGX 64GB + RK3588
- Perception Sensors: Dual 3D LiDAR + Four Fisheye Cameras
- Maximum Joint Torque: 165 Nm (121.7 lb·ft)
- Battery Capacity: 1000 Wh
- Operating Time: 2 ~ 2.5 h
- Continuous Walking Payload: 20–30 kg (44–66 lbs)
- Climbing Capability: Up to 80 cm (Up to 31.5 in)
- Maximum Step Height: 30 cm (11.8 in)
- Slope Capability: 25° ascent, 45° descent
- Operating Temperature: –20°C to 55°C (–4°F to 131°F)
- Cold-Start Capability: Below –10°C (Below 14°F)
- Ingress Protection: IP67
- Autonomous Navigation: Supported
- Autonomous Following: Supported
- Voice Interaction: Supported
Pudu D5-W
- Standing Dimensions: 900 × 543 × 572 mm (35.4* 21.4*22.5 in)
- Weight (with Battery): 61 kg (134.5 lbs)
- Computing Platform: NVIDIA Jetson Orin AGX 64GB + RK3588
-
Perception Sensors: Dual 3D LiDAR + Four Fisheye Cameras
-
Maximum Joint Torque: 165 Nm (121.7 lb·ft)
-
Battery Capacity: 1000 Wh
-
Operating Time: 2 ~ 2.5 h
-
Continuous Walking Payload: 20–30 kg (44–66 lbs)
-
Climbing Capability: Up to 80 cm (Up to 31.5 in)
-
Maximum Step Height: 30 cm (11.8 in)
-
Slope Capability: 25° ascent, 45° descent
-
Operating Temperature: –20°C to 55°C (–4°F to 131°F)
-
Cold-Start Capability: Below –10°C (Below 14°F)
-
Ingress Protection: IP67
-
Autonomous Navigation: Supported
-
Autonomous Following: Supported
- Voice Interaction: Supported
Product Specifications
